TLE4209AHKLA1 (INFINEON)

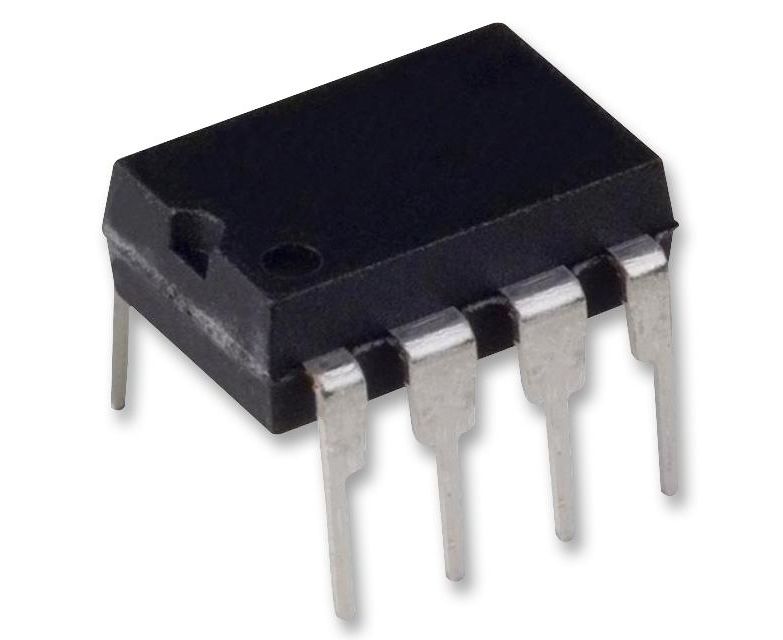

Полумостовой привод, 8В до 18В питание, 800мА/1 выход, DIP-8
The TLE4209A is a fully protected H-bridge Driver built using bi-polar high voltage power technology DOPL. The servo-loop-parameter positive and negative hysteresis/dead-band and angle-amplification are programmable with external resistors. An internal window-comparator controls the input line. In the case of a fault condition, like short-circuit to GND, short-circuit to supply-voltage and broken wire, the driver stops the motor immediately.
- Output protected against short-circuit
- Over-temperature protection with hysteresis
- Over and under-voltage lockout
- No crossover-current
- Internal clamp diodes
Области применения
Привод Двигателя и Управление, Авто
Выходное Напряжение:
-
Количество Выводов:
8вывод(-ов)
Количество Выходов:
1выход(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
150°C
Максимальное Напряжение Питания:
18В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
8В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
AEC-Q100
Стиль Корпуса Привода:
DIP
Тип Мотора:
Полумост
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
800мА
