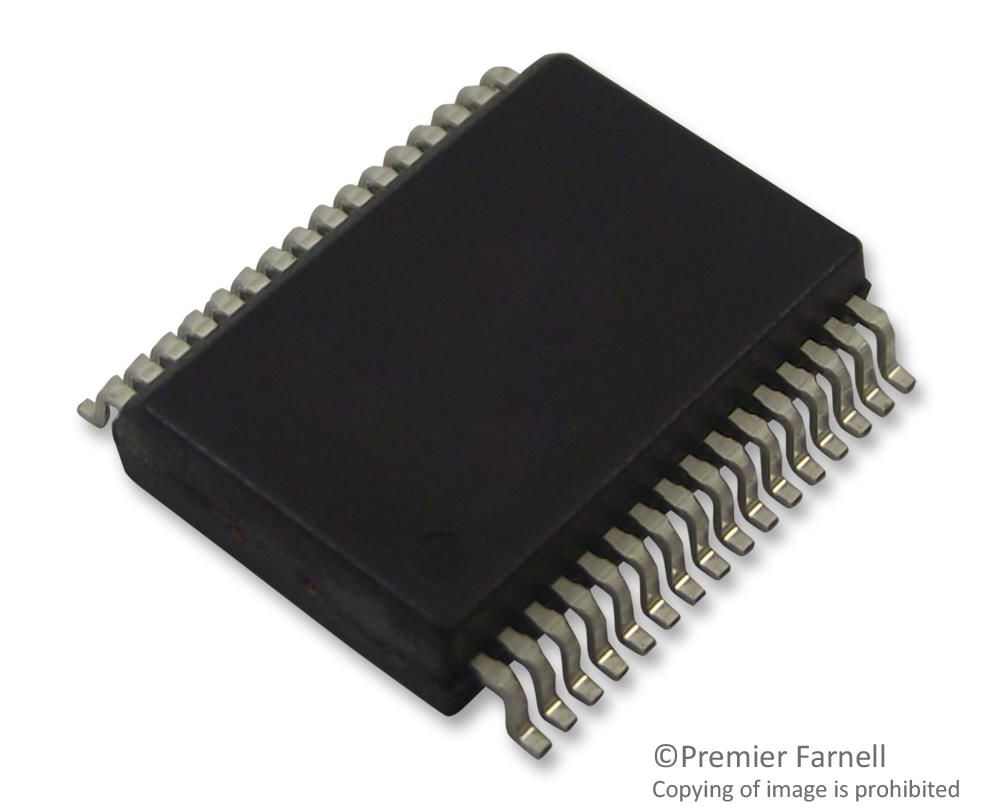

L6230PD (STMICROELECTRONICS)
Привод двигателя, DMOS, 8В до 52В питание, 52В/1.4А/1 выход, SOIC-36
The L6230PD is a 3-phase DMOS fully integrated Motor Driver with overcurrent protection, optimized for FOC application thanks to the independent current senses. Realized in BCD multi-power technology, the device combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. An uncommitted comparator with open-drain output is available. It features a non-dissipative overcurrent detection and protection on the high-side power MOSFETs and thermal shutdown.
- Integrated fast free-wheeling diodes
- Cross conduction protection
- Diagnostic output
- Uncommitted comparator
- Under-voltage lockout
- Up to 100kHz operating frequency
- 0.73R at Tj=25°C Typical RDS(ON)
Области применения
Привод Двигателя и Управление
Выходное Напряжение:
52В
Количество Выводов:
36вывод(-ов)
Количество Выходов:
1выход(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
52В
Минимальная Рабочая Температура:
-25°C
Минимальное Напряжение Питания:
8В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Привода:
SOIC
Тип Мотора:
Трехфазный DC Бесщеточный
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
1.4А
