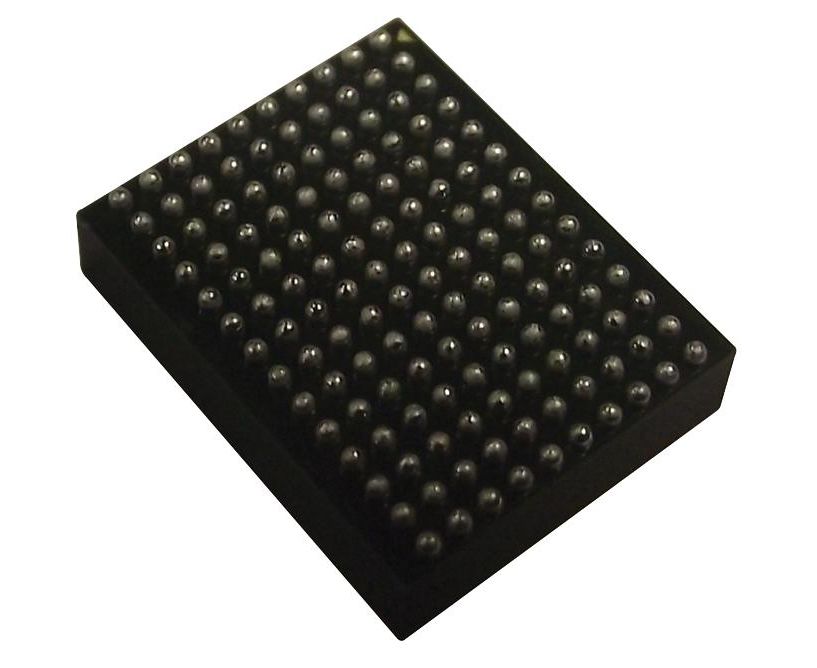

LTM4644IY#PBF (LINEAR TECHNOLOGY)
DC/DC POL преобразователь, регулируемый, понижающий, 1МГц, 600мВ до 5.5В выход, 4А, BGA-77
The LTM4644IY#PBF is a quad DC/DC µModule (Power Module) Regulator with configurable 4A output array. Outputs can be paralleled in an array for up to 16A capability. The switching controllers, power FETs, inductors and support components are included. Operating over an input voltage range of 4 to 14V or 2.375 to 14V with an external bias supply, the LTM4644 supports an output voltage range of 0.6 to 5.5V each set by a single external resistor. Its high efficiency design delivers 4A continuous (5A peak) output current per channel. Only bulk input and output capacitors are needed. Fault protection features include overvoltage, over-current and over-temperature protection.
- Quad output step-down µModule® regulator with 4A per output
- 2.375 to 14V Input range with external bias
- 4A DC, 5A Peak output current each channel
- Up to 5.5W power dissipation (TA = 60°C, 200 LFM, no heat sink)
- ±1.5% Total output voltage regulation
- Current mode control, fast transient response
- Parallel able for higher output current
- Output voltage tracking
- Internal temperature sensing diode output
- External frequency synchronization
- Overvoltage, current and temperature protection
Области применения
Обработка Сигнала
Количество Выводов:
77вывод(-ов)
Количество Выходов:
4 Выхода
Корпус ИС DC / DC Преобразователя:
BGA
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
14В
Максимальное Выходное Напряжение:
5.5В
Минимальное Входное Напряжение:
4В
Минимальное Выходное Напряжение:
600мВ
Соответствует Фталатам RoHS:
Да
Тип DC / DC Преобразователя:
Модуль
Топология (Общая Схема Соединений):
Понижающий (Понижающий)
Частота Коммутации:
1МГц
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
4А
