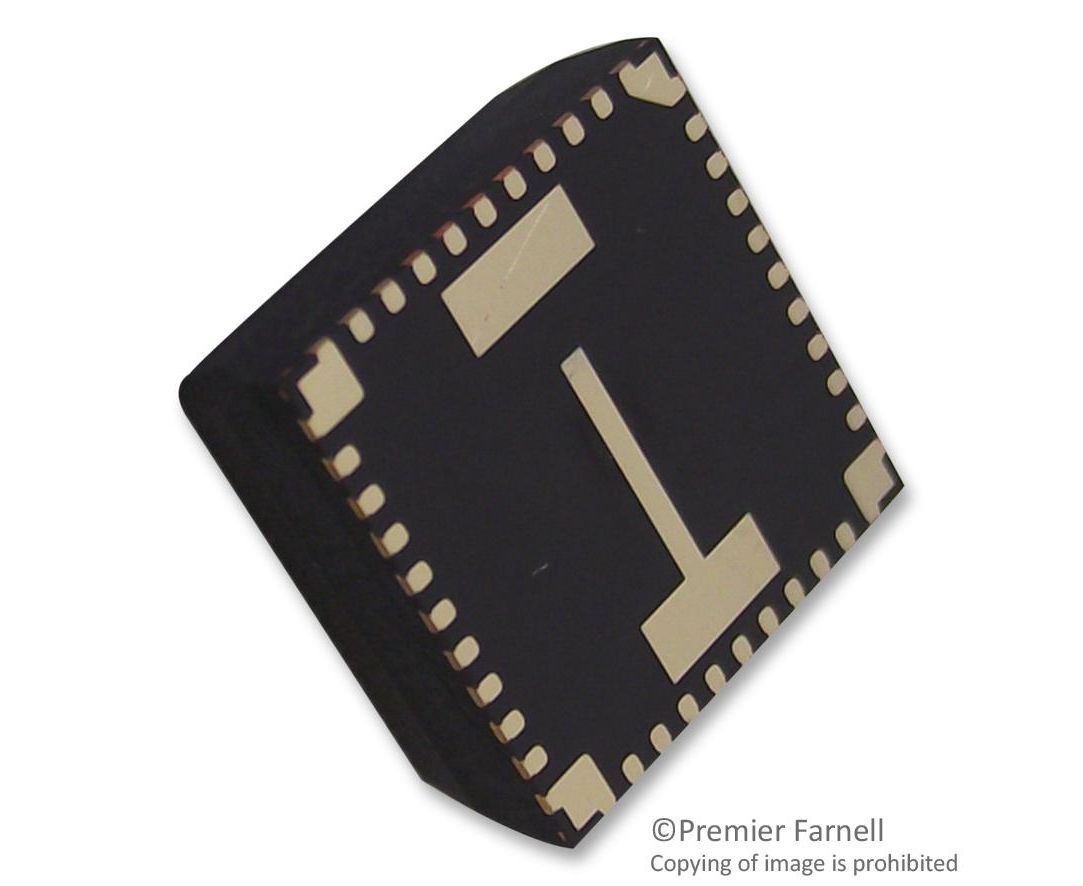

LMZ31710RVQT (TEXAS INSTRUMENTS)
DC/DC POL преобразователь, регулируемый, понижающий, 1.2МГц, 2.95В до 17В вход, 0.6В до 5.5В, 10А
The LMZ31710RVQT is a SIMPLE SWITCHER® Power Module with current sharing that combines a 10A DC/DC converter with power MOSFETs, a shielded inductor and passives into a low profile. This total power solution allows as few as three external components and eliminates the loop compensation and magnetic part selection process. It is easy to solder onto a printed circuit board and allows a compact point-of-load design. It achieves greater than 95% efficiency and excellent power dissipation capability with a thermal impedance of 13.3°C/W. The LMZ31710 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems.
- Complete integrated power solution allows small footprint, low-profile design
- Eco-mode/light load efficiency
- Supports parallel operation for higher current
- Synchronizes to an external clock
- Adjustable slow-start
- Output voltage sequencing/tracking
- Power good output
- Programmable undervoltage lockout
- Overcurrent and over temperature protection
- Pre-bias output start-up
- Adjustable switching frequency
- Provides 180° out-of-phase clock signal
- Meets EN55022 class B emissions - Integrated shielded inductor
- Wide-output voltage adjust - 0.6 to 5.5V with 1% reference accuracy
- Green product and no Sb/Br
Области применения
Обработка Сигнала, Медицинское, Визуализация, Видео и Зрение, Оборона, Военная и Авиационно-космическое, Потребительская Электроника, Радиочастотная Связь, Связь и Сеть, Автоматизация и Управление Процессами, Тестирование и Измерение
Количество Выводов:
42вывод(-ов)
Количество Выходов:
1 Выход
Корпус ИС DC / DC Преобразователя:
B3QFN
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Входное Напряжение:
17В
Максимальное Выходное Напряжение:
5.5В
Минимальное Входное Напряжение:
2.95В
Минимальное Выходное Напряжение:
600мВ
Соответствует Фталатам RoHS:
Да
Тип DC / DC Преобразователя:
Модуль
Топология (Общая Схема Соединений):
Понижающий (Понижающий)
Частота Коммутации:
1.2МГц
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
10А
