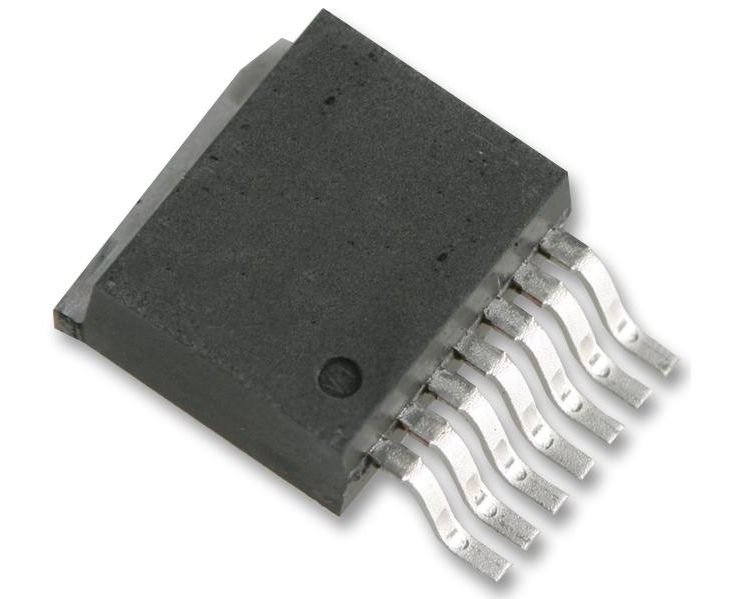

171050601 (WURTH ELEKTRONIK)
Импульсный понижающий DC-DC стабилизатор, регулируемый, 6В-36В (Vin), 800мВ-6В/5А, 812кГц, TO-263-7
The 171050601 is a MagI?C Variable Step-down Regulator Module (VDRM) designed for fast transient response. The VDRM series of the MagI?C power module family provide a fully integrated DC-to-DC power supply including the buck switching regulator and inductor. The WPMDH1200601 offers high efficiency and delivers up to 5A of output current. It operates from 6V input voltage up to 36V. The VDRM regulator has an on-board protection circuitry to guard against thermal overstress and electrical damage featuring thermal shut-down, overcurrent, short-circuit, overvoltage and undervoltage protection.
- Integrated shielded inductor solution for quick time to market and ease of use
- Single exposed pad for best-in-class thermal performance
- Low output voltage ripple (<10mVPP)
- Undervoltage lockout protection (UVLO)
- Programmable soft-start and voltage tracking
- Frequency synchronization input
- Thermal shut down, inrush current and output short-circuit protection
- Peak efficiency up to 92%
- 30W Maximum output power
- Operating ambient temperature range up to 105°C
- -40 to 125°C Operating junction temperature range
Области применения
Управление Питанием, Промышленное, Тестирование и Измерение, Медицинское
Количество Выводов:
7вывод(-ов)
Количество Выходов:
1 Выход
Корпус ИС DC / DC Преобразователя:
TO-263
Линейка Продукции:
-
Максимальная Рабочая Температура:
105°C
Максимальное Входное Напряжение:
36В
Максимальное Выходное Напряжение:
6В
Минимальное Входное Напряжение:
6В
Минимальное Выходное Напряжение:
800мВ
Соответствует Фталатам RoHS:
Да
Тип DC / DC Преобразователя:
Модуль
Топология (Общая Схема Соединений):
Понижающий (Понижающий)
Частота Коммутации:
812кГц
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
5А
