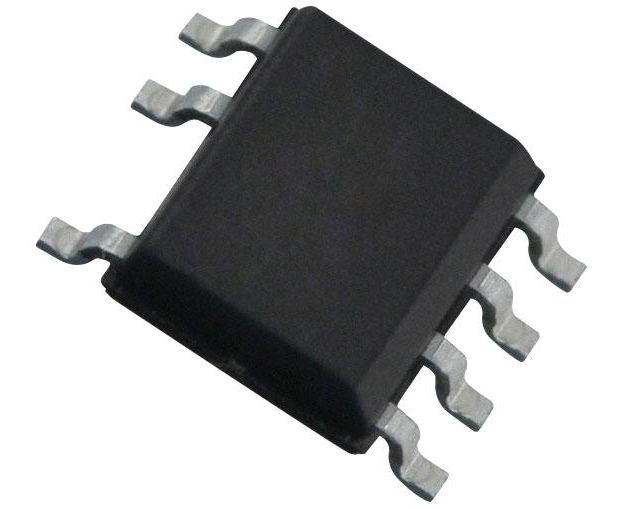

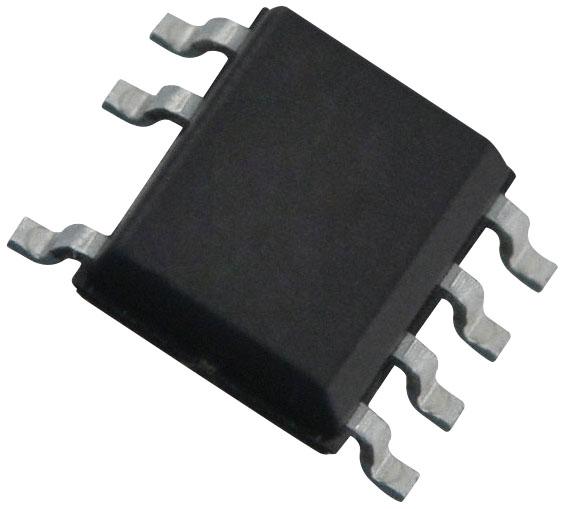

TEA1721AT/N1,118 (NXP)
Контроллер импульсного источника питания AC/DC, 700В AC, 430Гц, 5Вт, SOIC-7
The TEA1721AT/N1 is a HV start-up flyback Controller with integrated MOSFET for 5W applications. It operates directly from the rectified universal mains input. The device includes a high voltage power switch (700V) and has been optimized for flyback converter topologies to provide High efficiency over the entire load range with ultra-low power consumption in the no-load condition. It provides a circuit for start-up directly from the rectified mains voltage without any external bleeder circuits. The Burst mode frequency of 430Hz enables no-load power consumption below <10mW at high mains input.
- Low power SMPS controller for applications up to 5W
- Primary sensing without optocoupler and secondary feedback circuitry
- Minimizes audible noise in all operation modes
- Jitter function for reduced EMI
- Enables no-load power consumption
- Very low supply current in no-load condition with energy saver mode
- High voltage start-up circuit with zero current consumption during switching
- Over-temperature protection
Области применения
Управление Питанием
Класс Мощности:
5Вт
Количество Выводов:
7вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Входное Напряжение AC:
-
Минимальная Рабочая Температура:
-40°C
Минимальное Входное Напряжение AC:
-
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Преобразователя AC / DC:
SOIC
Тип упаковки:
Разрезная лента
Топология (Общая Схема Соединений):
Обратноходовой
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
