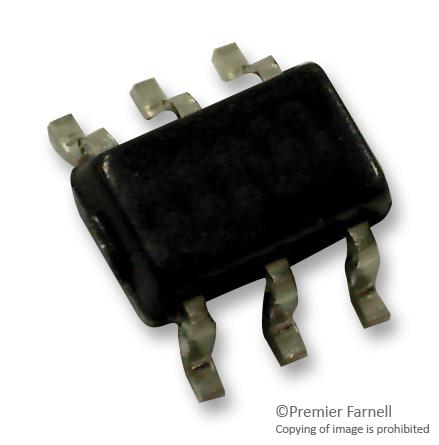

TMP100NA/3K (TEXAS INSTRUMENTS)
Датчик температуры (ИС), Цифровой, ± 1°C, -55 °C, 125 °C, SOT-23, 6 вывод(-ов)
The TMP100NA/3K is a Digital Temperature Sensor ideal for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistor replacement. The devices offer a typical accuracy of ±1°C without requiring calibration or external component signal conditioning. Device temperature sensors are highly linear and do not require complex calculations or look-up tables to derive the temperature. The on-chip, 12-bit ADC offers resolutions down to 0.0625°C. The devices feature SMBus, 2-wire and I?C interface compatibility. The device allows up to eight devices on one. The TMP101 device offers a SMBus Alert function with up to three devices per bus.
- 9 to 12-bit User-selectable resolution
- 2 Address pins
- 45µA Low quiescent current
Области применения
Связь и Сеть
Диапазон Точности Измерения:
± 1°C
Количество Выводов:
6вывод(-ов)
Линейка Продукции:
-
Максимальная Измеряемая Температура:
125°C
Максимальное Напряжение Питания:
5.5В
Минимальная Измеряемая Температура:
-55°C
Минимальное Напряжение Питания:
2.7В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микросхемы Датчика:
SOT-23
Тип Выхода Микросхемы:
Цифровой
Тип упаковки:
Повторная намотка на катушки
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
