STM8S208C8T6TR (STMICROELECTRONICS)
8 Bit MCU, Performance Line, STM8 Family STM8S Series Microcontrollers, 24 МГц, 64 КБ, 6 КБ
The STM8S208C8T6TR is a mainstream performance line 8-bit Microcontroller platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. This platform is manufactured using an ST-proprietary 130nm embedded non-volatile memory technology. The STM8 allows fast and safe development through enhanced stack pointer operations, advanced addressing modes and new instructions. The device offer 64kB of flash program memory and integrated true data EEPROM. Device performance is ensured by 20MIPS at 24MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source) and a clock security system.
- Advanced STM8 core with Harvard architecture and 3-stage pipeline
- Extended instruction set
- Low power crystal resonator oscillator
- External clock input
- Internal, user-trimmable 16MHz RC
- Internal low power 128kHz RC
- Clock security system with clock monitor
- Wait, active-halt and halt low power modes
- Peripheral clocks switched off individually
- Permanently active, low consumption power-on and power-down reset
- Nested interrupt controller with 32 interrupts
- Auto wakeup timer
- Window watchdog, independent watchdog
- High speed 1Mbps active beCAN 2.0B
- UART with clock output for synchronous operation - LIN master mode
- UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization
- SPI interface up to 10Mbps
- I?C interface up to 400Mbps
- 10-bit ADC with up to 16-channel
- Highly robust I/O design, immune against current injection
Области применения
Промышленное
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество I/O:
38I/O
Количество Выводов:
48вывод(-ов)
Линейка Продукции:
STM8 Family STM8S Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
2.95В
Размер Памяти:
64КБ
Размер Памяти RAM:
6КБ
Семейство Микроконтроллера:
STM8
Серия Микроконтроллера:
STM8S
Скорость ЦПУ:
24МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-

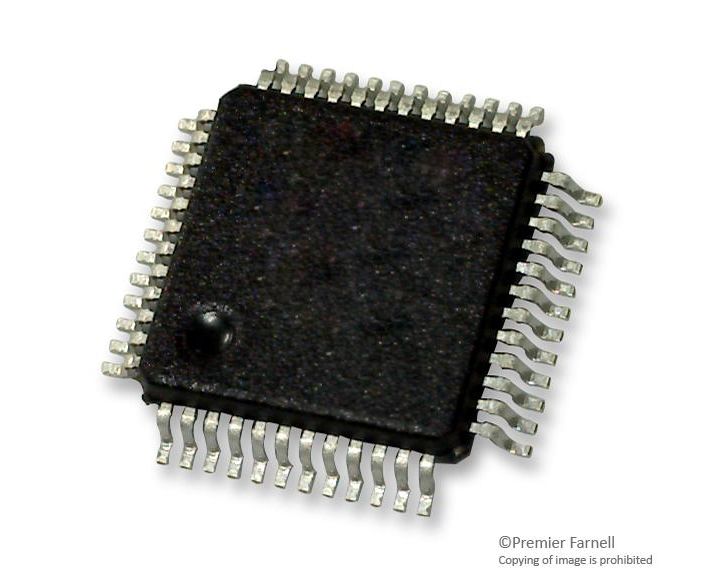

Стиль Корпуса Микроконтроллера:
LQFP
Тип Встроенного Интерфейса:
CAN, I2C, SPI, UART
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
