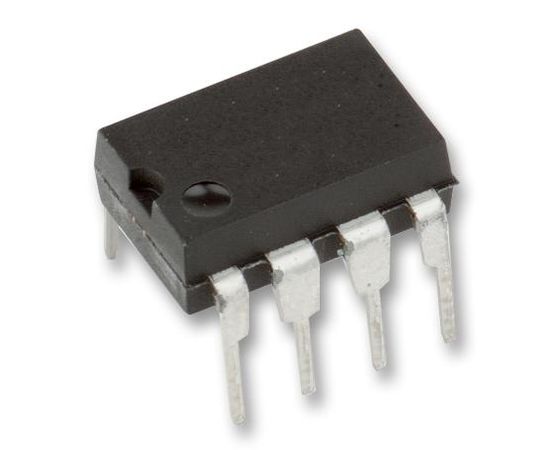

PIC12CE674-04I/P (MICROCHIP)
8 Bit MCU, программируемый один раз, PIC12 Family PIC12C6xx Series Microcontrollers, 4 МГц, 3.5 КБ
The PIC12CE674-04I/P is a mid-range PIC12 family 8-bit powerful (400 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS one-time programmable (OTP) based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 6 general-purpose I/O pins and 4-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 4MHz with wide operating voltage of 2.5 to 5.5V. The following trace coded chips are industrial temperature range: 1737SK0, 1745KWU, 1723RWA, 1645GJE, 16357JV
- 35 (14-bit wide) easy instructions to learn
- 8 level hardware stack
- 1 (9-bit) file select register
- Hardware interrupt handling
- In-circuit serial programming (ICSP™)
- Selectable clockout
- Power-on reset (POR)
- Power-up timer (PWRT) and Oscillator start-up timer (OST)
- Watchdog timer (WDT)
- Programmable code protection
- 16bytes of EEPROM data memory
Области применения
Промышленное, Авто, Потребительская Электроника, Привод Двигателя и Управление, Освещение, Медицинское, Охрана
Примечания
It was decided to drop the "I" from the industrial temperature range chips but they are industrial temperature range. There is no way of telling if a chip is industrial temperature unless you check the trace code with them.
Количество I/O:
6I/O
Количество Выводов:
8вывод(-ов)
Линейка Продукции:
PIC12 Family PIC12C6xx Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
3В
Размер Памяти:
3.5КБ
Размер Памяти RAM:
128Байт
Семейство Микроконтроллера:
PIC12
Серия Микроконтроллера:
PIC12C6xx
Скорость ЦПУ:
4МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микроконтроллера:
DIP
Тип Встроенного Интерфейса:
-
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
