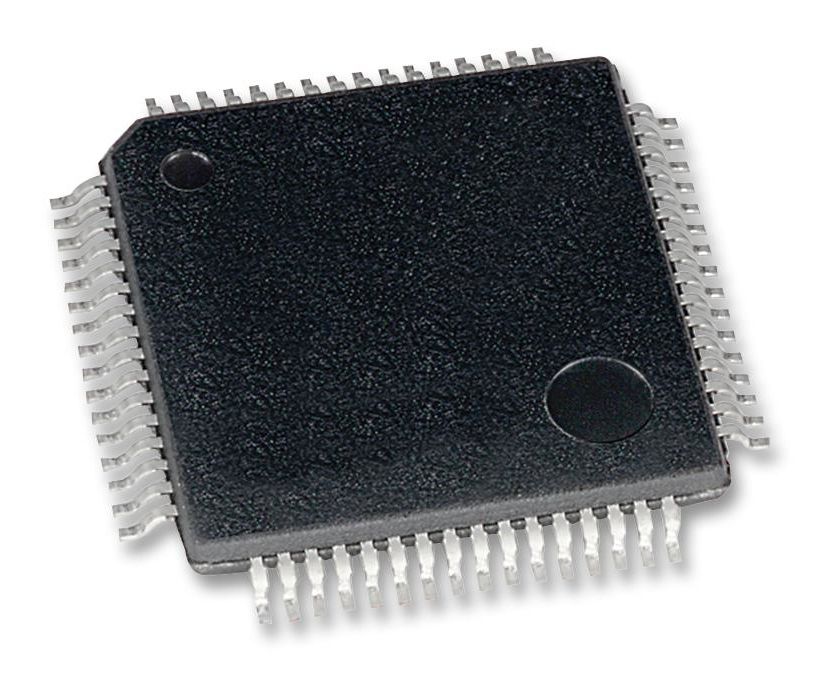

C8051F021-GQ (SILICON LABS)
8 Bit MCU, ISP Flash, C8051 Family C8051F02x Series Microcontrollers, 25 МГц, 64 КБ, 4.25 КБ
The C8051F021-GQ is a highly integrated mixed-signal high-speed pipelined 8-bit ISP Flash Microcontroller featuring 8051-compatible CIP-51 core, 64kB of in-system programmable flash memory, 4352 (4096 + 256) byte of on-chip RAM, two separate high speed ADC sub-systems (either 10/12-bit, 100ksps and 8-bit, 500ksps). These devices also include two separate 12-bit DACs. With on-chip VDD monitor, watchdog timer and clock oscillator, the device is truly stand-alone system-on-a-chip solutions. All analog and digital peripherals are enabled/disabled and configured by user firmware. The flash memory can be reprogrammed even in-circuit, providing non-volatile data storage and also allowing field upgrades of the 8051 firmware.
- High-speed 8051 µC Core
- Pipelined instruction architecture - Executes 70% of instruction set in 1 or 2 system clocks
- Up to 25MIPS throughput with 25MHz clock
- 22 Vectored Interrupt Sources
- Two analog comparators
- Voltage reference
- Precision VDD Monitor/Brown-out detector
- On-chip debug circuitry facilitates full-speed, nonintrusive In-circuit/In-system debugging
- Provides breakpoints, single-stepping, watchpoints, stack monitor
- Inspect/Modify memory and registers
- Superior performance to emulation systems using ICEChips, target pods and sockets
- IEEE1149.1 compliant boundary scan
- Hardware SMBus™, SPI™ and two UART serial ports available concurrently
- Programmable 16-bit counter/timer array with 5 capture/compare modules
- 5 General purpose 16-bit counter/timers
- Dedicated watch-dog timer, bi-directional reset pin
- 2 to 16MHz Internal programmable oscillator
- External oscillator - Crystal, RC, C or clock
- Real-time clock mode using timer 3 or PCA
- 10mA at 20MHz Typical operating current
Области применения
Промышленное
Количество I/O:
32I/O
Количество Выводов:
64вывод(-ов)
Линейка Продукции:
C8051 Family C8051F02x Series Microcontrollers
Максимальное Напряжение Питания:
3.6В
Минимальное Напряжение Питания:
2.7В
Размер Памяти:
64КБ
Размер Памяти RAM:
4.25КБ
Семейство Микроконтроллера:
C8051
Серия Микроконтроллера:
C8051F02x
Скорость ЦПУ:
25МГц
Соответствует Фталатам RoHS:
Будет Указано Позже
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микроконтроллера:
TQFP
Тип Встроенного Интерфейса:
I2C, SPI, UART
SVHC (Особо Опасные Вещества):
To Be Advised
RoHS статус:
Да
