C8051F005-GQ (SILICON LABS)
8 Bit MCU, смешанных сигналов, C8051 Family C8051F00x Series Microcontrollers, 25 МГц, 32 КБ
The C8051F005-GQ is a highly integrated mixed-signal 8-bit Microcontroller featuring a powerful 8051 core with 25MHz performance. This analog-intensive MCU features a 12-bit 8-channel 100ksps ADC, a 12-bit 2-channel DAC, 2 comparators and an on-chip temperature sensor. The C8051F005 also offers 32kB flash, 2.25kB RAM along with I?C, SPI, UART communication interfaces and 4 x 16-bit Timers.
- Pipelined instruction architecture - Executes 70% of instruction set in 1 or 2 system clocks
- Up to 25MIPS throughput with 25MHz clock
- 21 Vectored interrupt sources
- Two analog comparators
- Voltage reference
- Precision VDD Monitor/Brown-out detector
- On-chip Debug circuitry facilitates full-speed, nonintrusive in-system debug
- Provides breakpoints, single stepping, watchpoints, stack monitor
- Inspect/Modify memory and registers
- Superior performance to emulation systems using ICEChips, target pods and sockets
- IEEE1149.1 compliant boundary scan
- 32kB Flash - In-system programmable in 512byte sectors
- 2 to 16MHz Internal programmable oscillator
- External oscillator - Crystal, RC, C or Clock
- Can switch between clock sources on-the-fly - useful in Power saving modes
- 12.5mA at 25MHz Typical operating current
- Multiple power saving sleep and shutdown modes
Области применения
Медицинское, Переносные Устройства, Тестирование и Измерение, Потребительская Электроника, Связь и Сеть
Количество I/O:
32I/O
Количество Выводов:
64вывод(-ов)
Линейка Продукции:
C8051 Family C8051F00x Series Microcontrollers
Максимальное Напряжение Питания:
3.6В
Минимальное Напряжение Питания:
2.7В
Размер Памяти:
32КБ
Размер Памяти RAM:
2.25КБ
Семейство Микроконтроллера:
C8051
Серия Микроконтроллера:
C8051F00x
Скорость ЦПУ:
25МГц
Соответствует Фталатам RoHS:
Будет Указано Позже
Стандарты Автомобильной Промышленности:
-

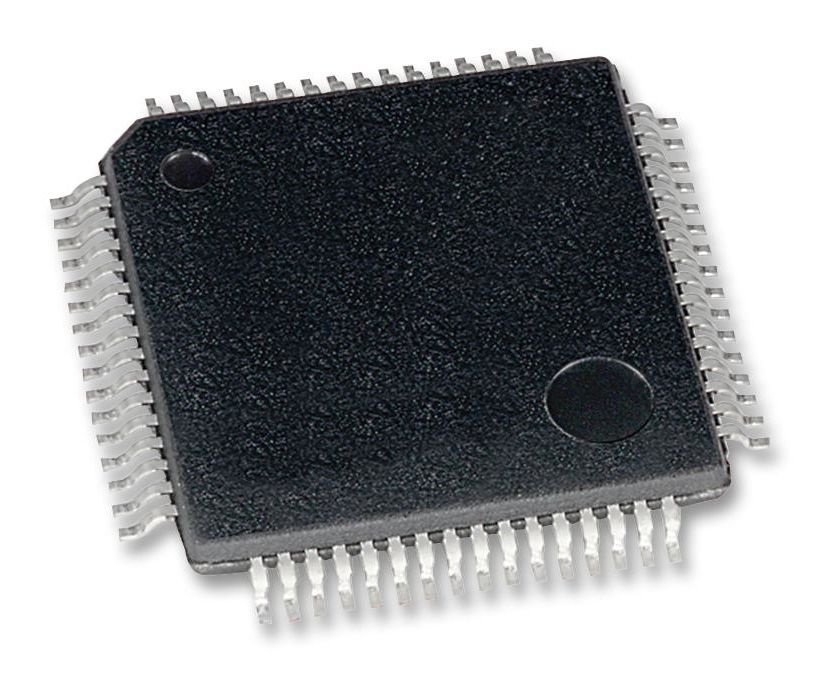

Стиль Корпуса Микроконтроллера:
TQFP
Тип Встроенного Интерфейса:
SPI, UART
SVHC (Особо Опасные Вещества):
To Be Advised
RoHS статус:
Да
