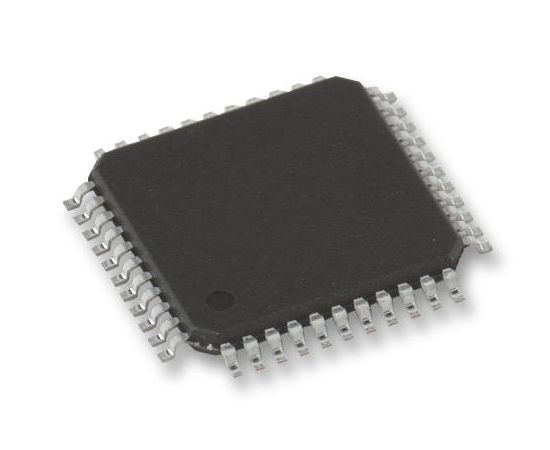

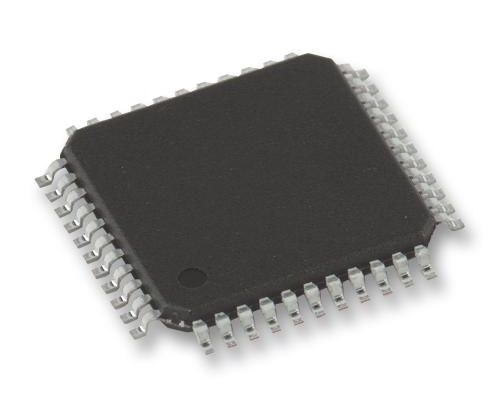

C505CA4EMCAFXQMA1 (INFINEON)
8 Bit MCU, AEC-Q100, 20 МГц, 32 КБ, 1.25 КБ, 44 вывод(-ов), MQFP
The SAF-C505CA-4EM CA is a 8-bit Microcontroller provides full CAN version 2.0B integrated on-chip. The C505CA meets the current requirements for increasingly small controllers with high performance, optimized EMC behaviour and fast communication between decentralized sensors, actuators and the host. The device provides 32kB of OTP, 256byte of RAM, 1kB of XRAM, an asynchronous/synchronous serial interface and highly accurate 10-bit ADC integrated on chip. With an external clock rate of 20MHz, the C505CA has an instruction time of 300ns.
- Fully compatible to standard 8051 microcontroller
- Superset of the 8051 architecture with 8 datapointers
- Up to 20MHz operating frequency (without clock prescaler)
- 375ns Instruction cycle time at 16MHz, 300ns instruction cycle time at 20MHz (50% duty cycle)
- 32 + 2 Digital l/O lines
- Three 16-bit timers/counters
- Full duplex serial interface with programmable baudrate generator
- Full CAN module version 2.0B active with 15 message objects and basic CAN feature
- 10-bit ADC with 8 multiplexed inputs with built-in self calibration
- Twelve interrupt sources with four priority levels
- On-chip emulation support logic (Enhanced Hooks)
- Enhanced fail safe mechanisms with programmable 15-bit watchdog timer and oscillator watchdog
- Fast power on reset
- Power saving modes
- Wake-up from power-down via external interrupt or incoming CAN message possible
Области применения
Промышленное, Автоматизация и Управление Процессами, Авто
Количество I/O:
34I/O
Количество Выводов:
44вывод(-ов)
Линейка Продукции:
-
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
4.25В
Размер Памяти:
32КБ
Размер Памяти RAM:
1.25КБ
Скорость ЦПУ:
20МГц
Соответствует Фталатам RoHS:
Будет Указано Позже
Стандарты Автомобильной Промышленности:
AEC-Q100
Стиль Корпуса Микроконтроллера:
MQFP
Тип Встроенного Интерфейса:
CAN, UART
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
