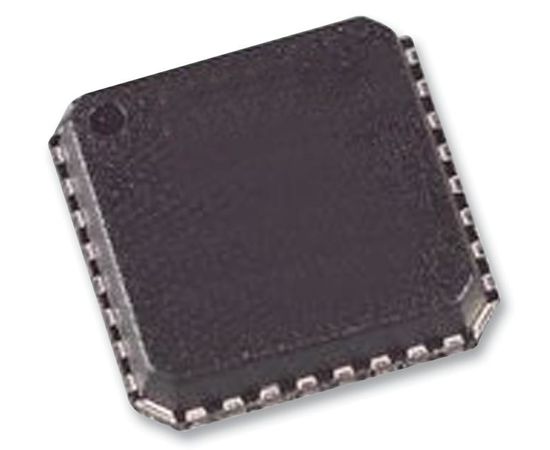

ATMEGA48-20MU (MICROCHIP)
8 Bit MCU, Будет Указано Позже
The ATMEGA48-20MU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 4kB ISP flash memory, 512byte SRAM, 256byte EEPROM, an 8-channel/10-bit A/D converter (TQFP and QFN/MLF) and debugWIRE for on-chip debugging. The device supports a throughput of 20MIPS at 20MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using Atmel's high density nonvolatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional nonvolatile memory programmer, or by an on-chip boot program running on the AVR core. The boot program can use any interface to download the application program in the application flash memory.
- Advanced RISC architecture
- Power-on reset and programmable brown-out detection
- Internal calibrated RC oscillator
- External and internal interrupt sources
- Five sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
- 131 Powerful instructions-most single clock cycle execution
- 32 x 8 General purpose working registers
- Fully static operation
- Up to 20MIPS throughput at 20MHz
- On-chip 2-cycle multiplier
- QTouch® library support
- Programmable watchdog timer with separate on-chip oscillator
- On-chip analog comparator
- Interrupt and wake-up on pin change
- Two 8-bit timers/counters with separate prescalers and compare modes
- One 16-bit timer/counter with separate prescaler, compare mode and capture mode
- Real-time counter with separate oscillator
- Six PWM channels
- Programmable serial USART
- Master/Slave SPI serial interface
Области применения
Привод Двигателя и Управление, Измерительное
Количество I/O:
23I/O
Количество Выводов:
32вывод(-ов)
Линейка Продукции:
AVR ATmega Family ATmega48 Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
2.7В
Размер Памяти:
4КБ
Размер Памяти RAM:
512Байт
Семейство Микроконтроллера:
AVR ATmega
Серия Микроконтроллера:
ATmega48
Скорость ЦПУ:
20МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микроконтроллера:
MLF
Тип Встроенного Интерфейса:
I2C, SPI, UART
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
