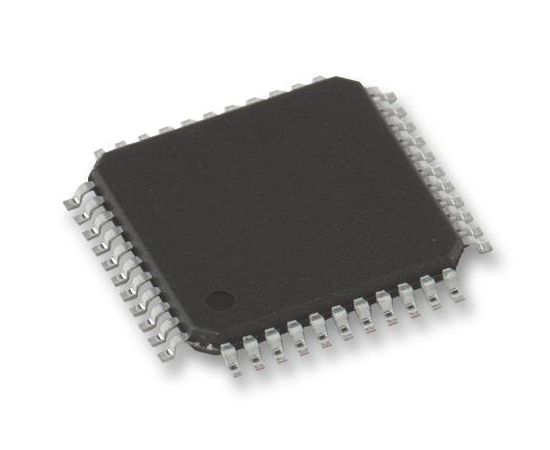

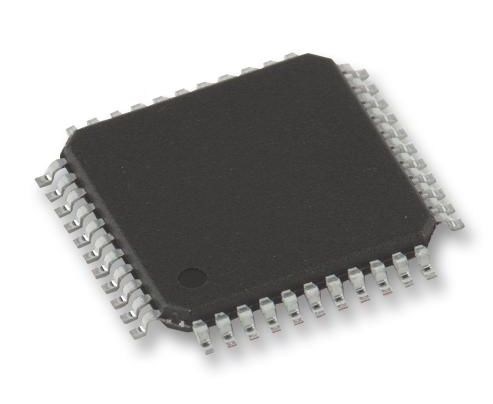

ATMEGA324PA-AU (MICROCHIP)
8 Bit MCU, AVR ATmega Family ATmega324 Series Microcontrollers, 20 МГц, 32 КБ, 2 КБ, 44 вывод(-ов)
The ATMEGA324PA-AU is a 8-bit high-performance AVR RISC-based Microcontroller Unit combines 32kB ISP flash memory with read-while-write capabilities, 1kB EEPROM, 2kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, a real time counter, three flexible timer/counters with compare modes and PWM, two USARTs, a byte oriented 2-wire serial interface, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE 1149.1 compliant) test interface for on-chip debugging and programming and six software selectable power saving modes.
- Device operates at 1.8 to 5.5V
- Advanced RISC architecture
- 131 Powerful instructions
- Fully static operation
- Up to 20MIPS throughput at 20MHz
- On-chip 2-cycle multiplier
- High endurance non-volatile memory segments
- Optional boot code section with independent lock bits
- In-system programming by on-chip boot program
- True Read-While-Write operation
Области применения
Автоматизация и Управление Процессами
Предупреждения
An interrupt between step 5 and step 6 will make the write cycle fail, since the EEPROM Master Write Enable will time-out.
Количество I/O:
32I/O
Количество Выводов:
44вывод(-ов)
Линейка Продукции:
AVR ATmega Family ATmega324 Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
1.8В
Размер Памяти:
32КБ
Размер Памяти RAM:
2КБ
Семейство Микроконтроллера:
AVR ATmega
Серия Микроконтроллера:
ATmega324
Скорость ЦПУ:
20МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микроконтроллера:
TQFP
Тип Встроенного Интерфейса:
I2C, SPI, UART
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
