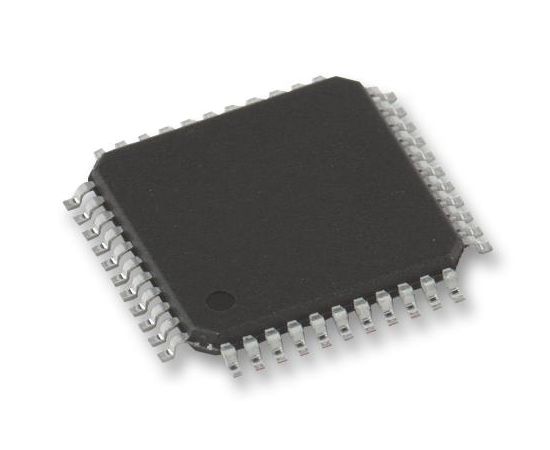

PIC24FJ64GB004-I/PT (MICROCHIP)
Микроконтроллер PIC/DSPIC, универсальный, PIC24 Family PIC24FJ GB Series Microcontrollers, PIC24
The PIC24FJ64GB004-I/PT is a 44-pin general purpose Flash Microcontroller with USB On-The-Go (OTG) and nanoWatt XLP technology. The 16-bit low power microcontroller with full-speed USB, 64kB flash memory, 8kB RAM and advanced peripherals. The USB On-The-Go module provides on-chip functionality as a target device compatible with the USB 2.0 standard, as well as limited stand-alone functionality as a USB embedded host. By implementing USB Host Negotiation Protocol (HNP), the module can also dynamically switch between device and host operation, allowing for a much wider range of versatile USB-enabled applications on a microcontroller platform. The PIC24F CPU has a 16-bit (data), modified Harvard architecture with an enhanced instruction set and a 24-bit instruction word with a variable length opcode field. The Program Counter (PC) is 23 bits wide and addresses up to 4M instructions of user program memory space.
- High-performance CPU - Up to 16 MIPS performance and C compiler optimized instruction set
- System - JTAG boundary scan and flash memory program support
- nanoWatt power managed modes - Run, idle and sleep modes
- Analogue - 10-bit ADC, 13 channels, 500kSPS
- Peripherals - Peripheral pin select for remapping digital peripherals to I/O
- Self-reprogrammable under software control
- High-current sink/source (18mA) on all I/O pins
- Fail-safe clock monitor operation
- Power-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)
- Two flexible watchdog timer (WDT) for reliable operation
- JTAG boundary scan support
Области применения
Компьютеры и Периферия, Промышленное
Предупреждения
ESD sensitive device, take proper precaution while handling the device.
Архитектура:
PIC24
Количество I/O:
35I/O
Количество Бит:
16бит
Количество Выводов:
44вывод(-ов)
Линейка Продукции:
PIC24 Family PIC24FJ GB Series Microcontrollers
Максимальное Напряжение Питания:
3.6В
Минимальное Напряжение Питания:
2В
Размер Памяти:
64КБ
Размер Памяти RAM:
8КБ
Семейство Микроконтроллера:
PIC24
Серия Микроконтроллера:
PIC24FJ GB
Скорость ЦПУ:
32МГц
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Микроконтроллера:
TQFP
Тип Встроенного Интерфейса:
I2C, LIN, SPI, UART, USB
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
