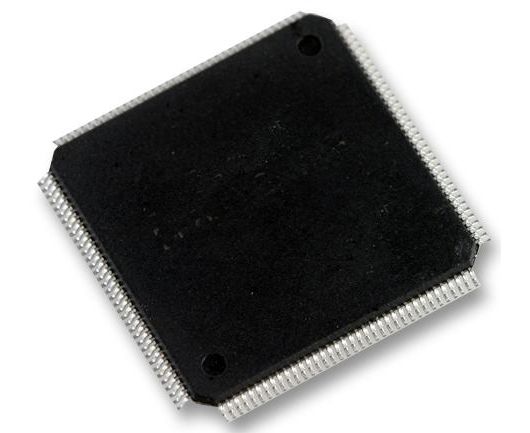

LPC4337JBD144E (NXP)
Микроконтроллер ARM, LPC Family LPC4300 Series Microcontrollers, ARM Cortex-M4, 32бита, 204 МГц
The LPC4337JBD144E is an ARM Cortex-M4 based microcontrollers for embedded applications which include an ARM Cortex-M0 coprocessor. The ARM Cortex-M4 is a next generation 32-bit core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration. The ARM Cortex-M4 CPU incorporates a 3-stage pipeline, uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching.
- Processor running at frequencies of up to 204 MHz
- Built-in Memory Protection Unit supporting eight regions
- Built-in Nested Vectored Interrupt Controller
- Hardware floating-point unit.
- Non-maskable Interrupt input
- JTAG and Serial Wire Debug, serial trace, eight breakpoints, and four watch points.
- System tick timer
- Serial GPIO interface.
- State Configurable Timer subsystem on AHB.
- External Memory Controller supporting external SRAM, ROM, NOR flash, and SDRAM devices.
- Secure Digital Input Output (SD/MMC) card interface
- Crystal oscillator with an operating range of 1 MHz to 25 MHz
Области применения
Управление Питанием, Привод Двигателя и Управление, Аудио, Промышленное
Архитектура:
ARM Cortex-M4
Количество I/O:
83I/O
Количество Бит:
32бита
Количество Выводов:
144вывод(-ов)
Линейка Продукции:
LPC Family LPC4300 Series Microcontrollers
Максимальное Напряжение Питания:
3.6В
Минимальное Напряжение Питания:
2.2В
Размер Памяти:
1МБ
Размер Памяти RAM:
136КБ
Семейство Микроконтроллера:
LPC
Серия Микроконтроллера:
LPC4300
Скорость ЦПУ:
204МГц
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Микроконтроллера:
LQFP
Тип Встроенного Интерфейса:
I2C, I2S, SPI, SSI, UART, USB
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
