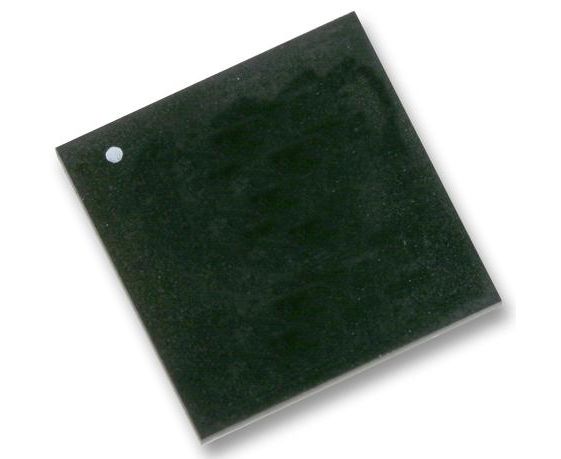

AT91SAM9260B-CU (MICROCHIP)
Микроконтроллер ARM, ARM Thumb, SAM9 Family AT91SAM92 Series Microcontrollers, ARM9, 32бита
The AT91SAM9260B-CU is a SMART 32-bit Embedded Microcontroller based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals. The SAM9260 is architectured on a 6-layer matrix, allowing a maximum internal bandwidth of six 32-bit buses. It also features an External Bus Interface capable of interfacing with a wide range of memory devices.
- 180MHz ARM926EJ-S ARM Thumb processor
- ITU-R BT. 601/656 Image sensor interface (ISI)
- USB device and USB host with dedicated on-chip transceiver
- 10/100Mbps Ethernet MAC controller (EMAC)
- One high speed memory card host
- Two master/slave serial peripheral interfaces (SPI)
- Two 3-channel 32-bit timers/counters (TC)
- One synchronous serial controller (SSC)
- One two-wire interface (TWI)
- Four universal synchronous/asynchronous receiver/transmitters (USARTs)
- Two UARTs
- 4-channel 10-bit ADC
- 90MHz six 32-bit Layer AHB bus matrix
- 22 Peripheral DMA channels
- Boot from NAND flash, dataflash or serial dataflash
- Reset controller (RSTC) with on-chip power-on reset
- Two programmable external clock signals
- Advanced interrupt controller (AIC)
- Debug unit (DBGU)
- Periodic interval timer (PIT)
Области применения
Автоматизация и Управление Процессами
Архитектура:
ARM9
Количество I/O:
96I/O
Количество Бит:
32бита
Количество Выводов:
217вывод(-ов)
Линейка Продукции:
SAM9 Family AT91SAM92 Series Microcontrollers
Максимальное Напряжение Питания:
1.95В
Минимальное Напряжение Питания:
1.65В
Размер Памяти:
32КБ
Размер Памяти RAM:
8КБ
Семейство Микроконтроллера:
SAM9
Серия Микроконтроллера:
AT91SAM92
Скорость ЦПУ:
210МГц
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Микроконтроллера:
BGA
Тип Встроенного Интерфейса:
EBI, EMI, ENET, I2C, SPI, SSC, UART, USART
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
