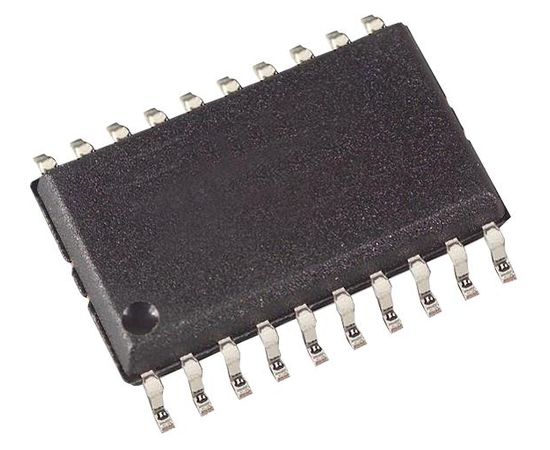

74HC373D,653 (NEXPERIA)

E1085341
132 Р
(включая НДС 20%)
Доступно: 20 шт.


Защелка, 74HC373, Прозрачная, С Тремя Состояниями Неинвертирующий, 12 нс, 7.8 мА, SOIC

Документация
Technical Data Sheet EN
CAD CadSoft_EAGLE EN

БрендNEXPERIA Наименование74HC373D,653 Цена заШтука Страна производстваThailand СкладЭЛИМ

Защелка, 74HC373, Прозрачная, С Тремя Состояниями Неинвертирующий, 12 нс, 7.8 мА, SOIC

The 74HC373D is an octal transparent D Latch with 3-state outputs. It features LE and OE inputs. When LE is high, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding D-input changes. When LE is low the latches store the information that was present at the inputs a set-up time preceding the high-to-low transition of LE. A high on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the latches. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.



  • 3-state Non-inverting outputs for bus oriented applications
  • Common 3-state output enable input
  • CMOS Input level
  • TTL Input level
  • Complies with JEDEC standard No. 7A



Области применения

Промышленное, Потребительская Электроника
