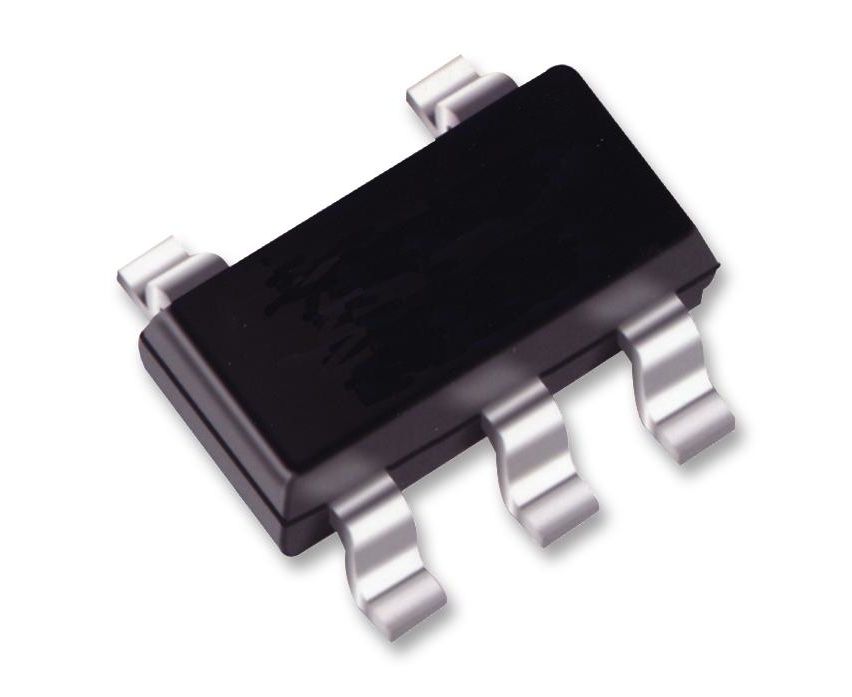

SN74LVC1G240DBVT (TEXAS INSTRUMENTS)
Одиночный буфер / драйвер, инвертирующий, 3 состояния, 1.65В до 5.5В, SOT-23-5
The SN74LVC1G240DBVT is a single inverting Buffer/Driver designed for 1.65 to 5.5V VCC operation. It is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Provides down translation to VCC
- IOFF Supports live insertion, partial-power-down mode and back drive protection
- Latch-up performance exceeds 100mA per JESD 78, class II
- 3.7ns at 3.3V Propagation delay (tpd)
- 10µA ICC Low power consumption
- ±24mA Output drive at 3.3V
- Green product and no Sb/Br
Области применения
Промышленное, Автоматизация и Управление Процессами, Обработка Сигнала
Базовый Номер / Семейство Логики:
74LVC1G240
Базовый Номер Микросхемы Логики:
741G240
Количество Выводов:
5вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
1.65В
Семейство Логической Микросхемы:
74LVC
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микросхемы Логики:
SOT-23
Тип Логического Устройства:
Буфер, Инвертирующий
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
