74LVC245ABQ (NEXPERIA)

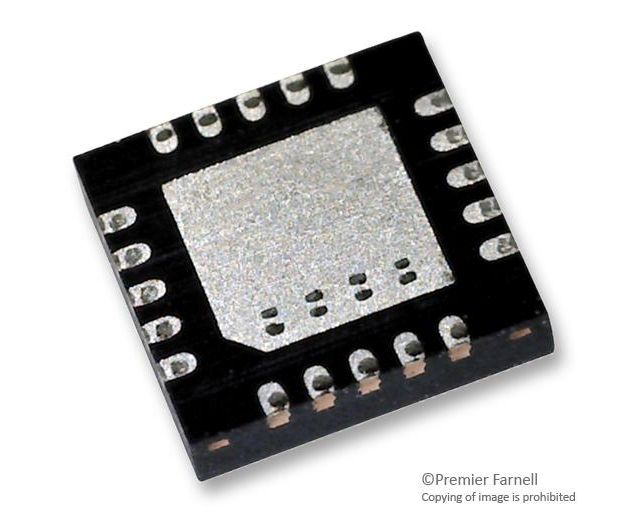

Приемопередатчик, неинвертирующий, 1.2В до 3.6В, DHVQFN-20
The 74LVC245ABQ is a 8-bit Bus Transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The device features an output enable (OE) input for easy cascading and a send/receive (DIR) input for direction control. OE controls the outputs so that the buses are effectively isolated. Inputs can be driven from either 3.3/5V devices and when disabled, up to 5.5V can be applied to the outputs. These features allow the use of these devices in mixed 3.3 and 5V applications. The 74LVCH245A bus hold on data inputs eliminates the need for external pull-up resistors to hold unused inputs.
- CMOS low-power consumption
- Direct interface with TTL levels
- Complies with JEDEC standard
- 5V Tolerant inputs/outputs for interfacing with 5V logic
- High-impedance when VCC = 0V
- Inputs accept voltages up to 5.5V
Области применения
Промышленное, Автоматизация и Управление Процессами, Обработка Сигнала, Авто
Базовый Номер / Семейство Логики:
74LVC245
Базовый Номер Микросхемы Логики:
74245
Количество Выводов:
20вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
3.6В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
1.2В
Семейство Логической Микросхемы:
74LVC
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микросхемы Логики:
DHVQFN
Тип Логического Устройства:
Приемопередатчик, Неинвертирующий
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
