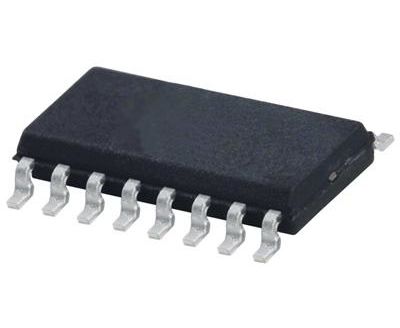

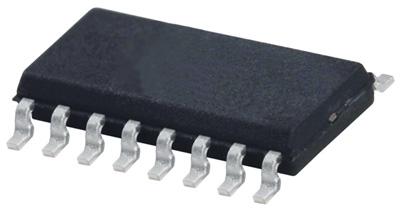

TJA1052IT/5Y (NXP)
CAN шина, приемопередатчик, CAN, 1, 1, 3 В, 5.25 В, SOIC
The TJA1052IT/5Y is a high-speed CAN Transceiver IC, provides a galvanically isolated interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus. The TJA1052IT/5Y is specifically targeted at electric vehicles (EV) and hybrid electric vehicles (HEV), where galvanic isolation barriers are needed between the high- and low-voltage parts.
- Loop delay symmetry timing enables communication at data rates up to 2Mbps in CAN FD fast phase
- Flawless Cooperation Between Isolator and Transceiver
- Fewer Components Improves Reliability in Applications
- Guaranteed Performance (Example: Maximum Loop Delay <220ns)
- Electrical Transient Immunity of 45kV/µs (Typical)
- AEC-Q100 Qualified
- Suitable for use in 12 and 24V Systems, Compatible with 3 to 5V Microcontrollers
- Bus Common Mode Voltage (Vcm) = ±25V
- Low Electromagnetic Emission (EME) and High Electromagnetic Immunity (EMI)
- Dark Green Product (Halogen-free)
- Functional Behaviour Predictable Under All Supply Conditions
- Transceiver Disengages from Bus when Not Powered up (Zero Load)
- Up to 5kV (RMS) Rated Isolation
- Three Versions Available (1kV, 2.5kV and 5kV)
- Voltage Compliant with UL 1577, IEC 61010 and IEC 60950
- 5kV (RMS) Rated Isolation Voltage Compliant with UL 1577, IEC 61010 and IEC 60950
- Supports ISO6469 Electrically Propelled Road Vehicles, Safety Specifications
- High ESD Handling Capability on Bus Pins
- Bus Pins Protected Against Transients in Automotive Environments
- Transmit Data (TXD) Dominant Time-out Function
Области применения
Связь и Сеть, Авто
Количество RX Буферов:
1
Количество Буферов TX:
1
Количество Выводов:
16вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
5.25В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
3В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Интерфейса:
SOIC
Тип Интерфейса ИС:
CAN
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
