HSC150100RJ (CGS - TE CONNECTIVITY)
Резистор, лепесток для пайки, 100 Ом, Серия HSC, 150 Вт, ± 5%, Лепесток для Пайки, 2.5 кВ

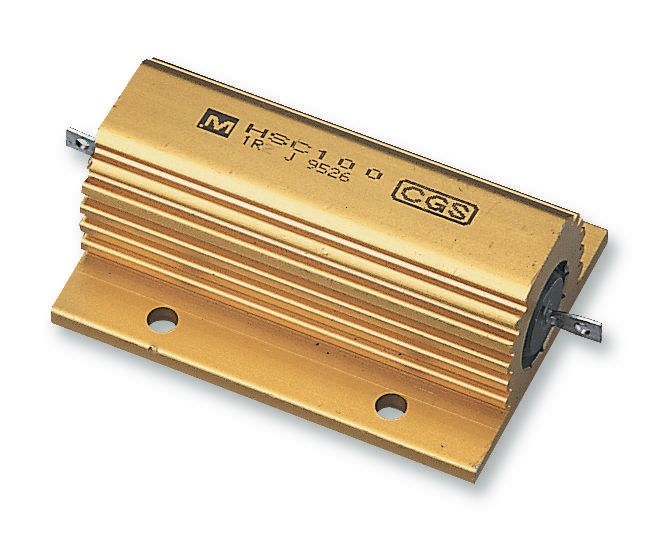

The TE Connectivity HSC150 series are wirewound resistors with aluminium housing. These are extremely stable, high quality wirewound resistors capable of dissipating high power in a limited space with relatively low surface temperature. The power is rapidly dissipated as heat through the aluminium housing to specified heat sink. These standard and custom designed aluminium housed resistors for general purpose applications, power supplies, power generation and traction industry.
- High power dissipation of 150W (with heat sink)
- Resistance value ranges from 0.10 ohm to 100Kohm
- Working voltage is 2500V
- Low inductance
- ±10%, ±5%, ±3%, ±2%, ±0.5% & ±0.25% tolerance
- Temperature coefficient is 50ppm/°C(below 100R), 30ppm/°C( above 100R)
- Dimensions is H= 47.5mm, W= 98mm, L= 26mm with 58mm x 37mm fixing centres
- High Power Resistor
Области применения
Промышленное, Потребительская Электроника, Переносные Устройства, Управление Питанием
Выводы Резистора:
Лепесток для Пайки
Допуск Сопротивления:
± 5%
Класс Мощности:
150Вт
Линейка Продукции:
Серия HSC
Номинальное Напряжение:
2.5кВ
Сопротивление:
100Ом
Температурный Коэффициент:
± 50млн??/°C
Тип Элемента Сопротивления:
Проволока
SVHC (Особо Опасные Вещества):
No SVHC (15-Jun-2015)
RoHS статус:
Да
