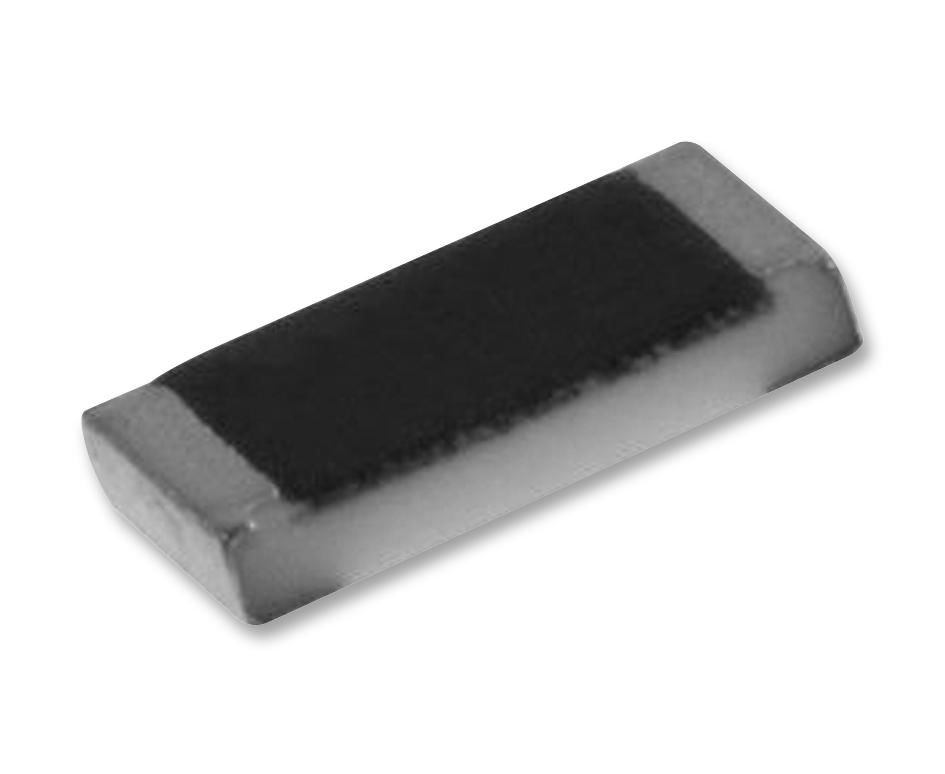

RC0805JR-0710ML (YAGEO)
SMD чип резистор, 0805 [2012 Метрический], 10 МОм, RC Series, 150 В, Толстая Пленка, 125 мВт
The RC0805JR-0710ML from Yageo(Phycomp) is a RC_L series general purpose chip resistor. The resistor is constructed on top of a high-grade ceramic body. Internal metal electrodes are added on each end to make the contacts to the thick film resistive element.
- 0805 (2012 metric) EIA size code
- Resistance is 10Mohm with ±5% tolerance
- Maximum working voltage is 150V and power rating is 125mW
- Temperature coefficient is ±100ppm/°C
- Operating temperature range from -55°C to 155°C
- High component and equipment reliability
- Forbidden materials are not used in products/production
- Small chip size save PCB space
Области применения
Промышленное, Управление Питанием, Потребительская Электроника, Переносные Устройства
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Допуск Сопротивления:
± 5%
Класс Мощности:
125мВт
Линейка Продукции:
RC Series
Номинальное Напряжение:
150В
Сопротивление:
10МОм
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Резистора:
0805 [2012 Метрический]
Температурный Коэффициент:
± 100млн??/°C
Тип упаковки:
Катушка
Тип Элемента Сопротивления:
Толстая Пленка
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
