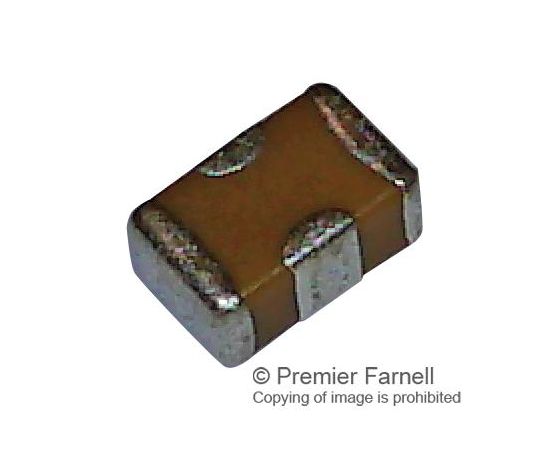

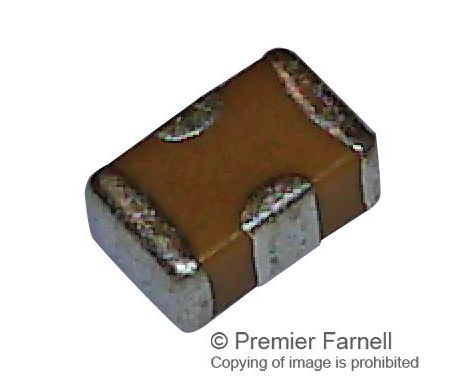

NFM18CC101R1C3D (MURATA)
Фильтр ЛЭП, 100 пФ, 16 В DC, От Электромагнитных Помех, от Радиопомех, 500 мА
The NFM18CC101R1C3D is a CHIP EMIFIL® Power Line Filter designed for noise suppression. Its inner structure is like a feed-through capacitor, makes its ground impedance quite low. The 3-terminal capacitor has a good noise suppression effect at a high frequency range up to several hundred MHz. It is suitable for use in noise suppression in low speed signal lines and general electronic equipment.
- REACH compliant
- Low ESL
- Standard of 3-terminal capacitor
- 300mR Maximum DC resistance
- 1000MR Minimum insulation resistance
- -55 to 125°C Operating temperature range
Области применения
Считывание и Контрольно-измерительная Аппаратура, Связь и Сеть
Предупреждения
The excessive heat by other products may cause deterioration of insulation resistance and excessive heat at this product, resulting in a fire.
Емкость:
100пФ
Линейка Продукции:
-
Максимальный Ток Утечки:
-
Минимальная Индуктивность:
-
Номинальное Напряжение:
16В DC
Соединители Фильтра:
SMD (Поверхностный Монтаж)
Тип упаковки:
Разрезная лента
Тип Фильтра:
От Электромагнитных Помех, от Радиопомех
Ток:
500мА
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
