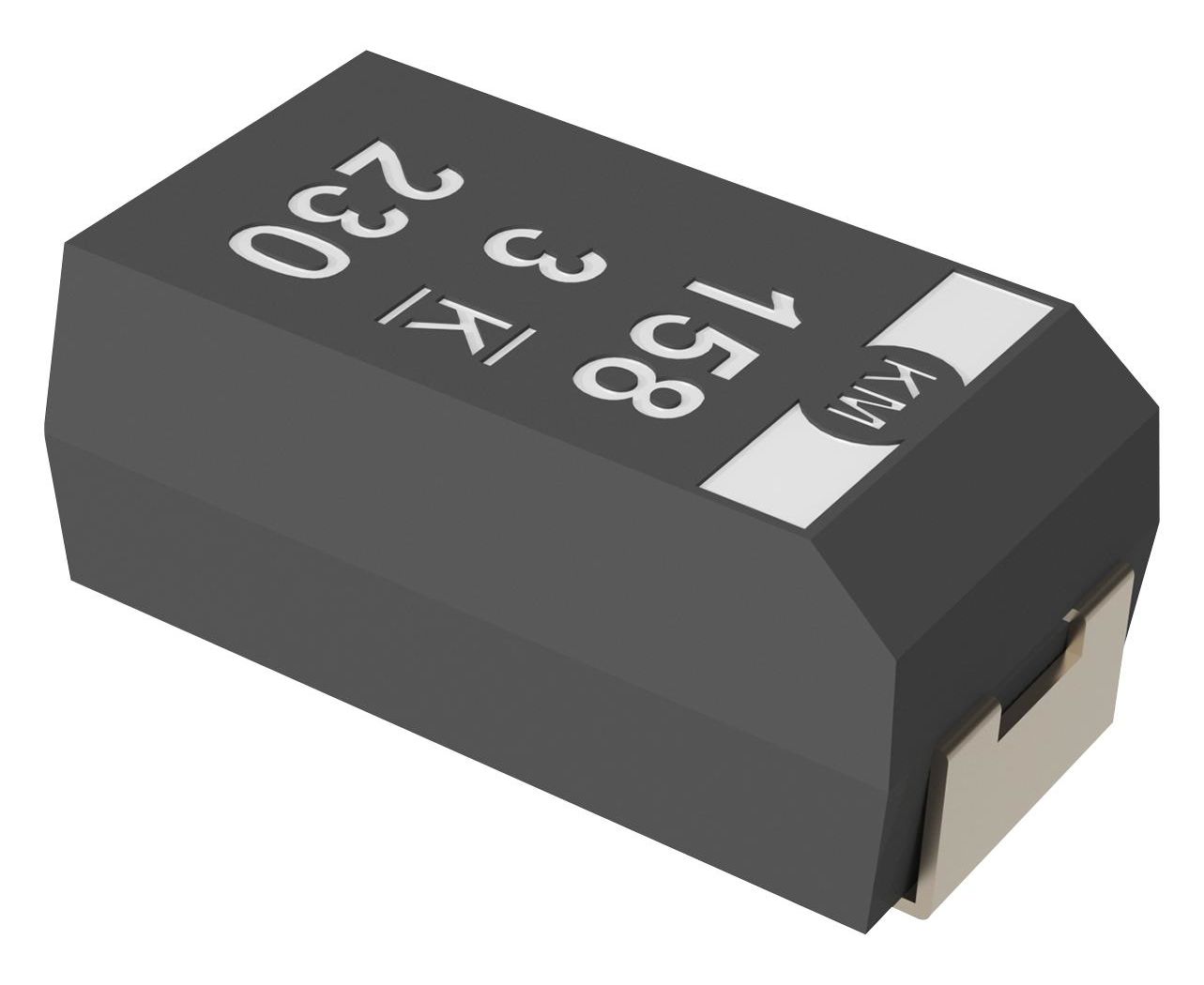

T530D477M004ATE006 (KEMET)
Танталовый полимерный конденсатор, KO-CAP®, 470 мкФ, 4 В, серия T530, ± 20%, D, 0.006 Ом
The T530 High Capacitance Polymer Electrolytic expands the capacitance ranges of the T520 KO-CAP with a higher 125°C operating temperature and lower ESR options. The improved ESR levels allow for higher ripple current capability than the T520. The T530's reduced ESR, ripple current capability and capacitance retention at higher frequencies provides the lowest total capacitance and most economical solution for high switching frequency DC power applications. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities.
- Extremely low ESR
- Volumetrically efficient
- High frequency capacitance retention
- 100% accelerated steady state aging
- 100% surge current tested
- Utilizes multiple tantalum anode technology
- Halogen-Free Epoxy/RoHS Compliant
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Допуск Емкости:
± 20%
Емкость:
470мкФ
Код Размера Производителя:
D
Линейка Продукции:
серия T530
Максимальная Рабочая Температура:
125°C
Минимальная Рабочая Температура:
-55°C
Номинальное Напряжение:
4В
Стандарты Автомобильной Промышленности:
-
Тип упаковки:
Разрезная лента
Эффективное Последовательное Сопротивление:
0.006Ом
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
