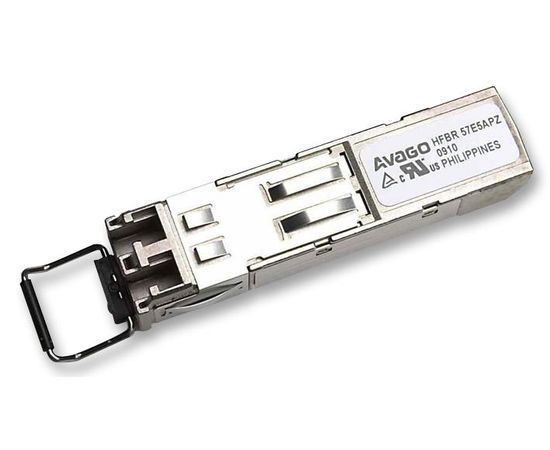

HFBR-57E5APZ (BROADCOM LIMITED)
Оптоволоконный приемопередатчик, 1308 нм, 3.6 В, 125 Мбод
The HFBR-57E5APZ is a 125MBd SFP LC Transceiver for fast Ethernet and FDDI application with DMI feature. The device gives the system designer a product to implement FDDI/fast Ethernet network with DMI and SONET OC-3 (SDH STM-1) physical layers for ATM and other services. It is compatible to SFF-8472 (digital diagnostic interface for optical transceivers), using the 2-wire serial interface defined in the SFF-8472 MSA, the device provides real-time information on temperature, LED bias current, LED average output power and receiver average input power. The interface also adds the ability to monitor the receiver loss of signal (RX_LOS). It operates at a nominal wavelength of 1300nm with a LC fibre connector interface. It is optimized to operate using both 50/125µm and 62.5/125µm multimode fibre.
- Compatible with ATM Forum UNI SONET OC-3 multimode fibre physical layer specification
- LC duplex connector optical interface
- Compatible with 100Base-FX version of IEEE802.3u
- 3.3V Single power supply
- 3.3V TTL LOS Output
- Receiver outputs are squelch enabled
- Bail de-latch
- Hot plug capability
- -40 to 85°C Operating temperature range
Области применения
Компьютеры и Периферия, Автоматизация и Управление Процессами
Линейка Продукции:
-
Максимальная Скорость Передачи Данных:
125Мбод
Напряжение Питания:
3.6В
Типичное Значение Длины Волны:
1308нм
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
