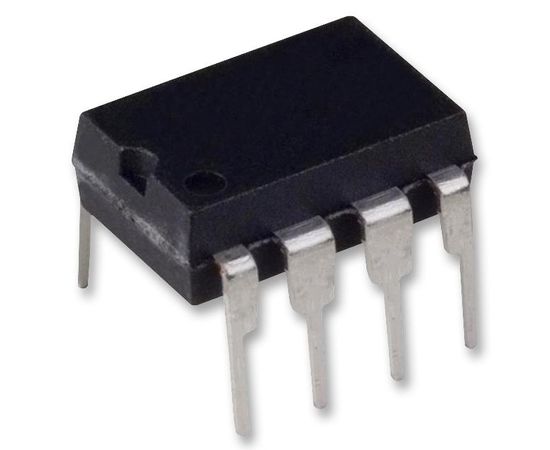

HCPL-3180-000E (BROADCOM LIMITED)
Оптопара, с драйвером затвора на выходе, 1 канал, DIP, 8 вывод(-ов), 3.75 кВ
The HCPL-3180-000E is a 2A output current high-speed Gate Drive Optocoupler has a GaAsP LED. The LED is optically coupled to an integrated circuit with a power stage. This optocoupler is ideally suited for high frequency driving of power IGBT and MOSFETs used in many applications.
- High speed response - 200ns maximum propagation delay over temperature range
- Undervoltage lock-out protection (UVLO) with hysteresis
- -40 to 100°C Wide operating temperature range
- 20ns Typical pulse width distortion
Области применения
Управление Питанием, Обработка Сигнала
Предупреждения
It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation, which may be induced by ESD.
Количество Выводов:
8вывод(-ов)
Количество Каналов:
1 канал
Линейка Продукции:
-
Напряжение Изоляции:
3.75кВ
Стиль Корпуса Оптопары:
DIP
SVHC (Особо Опасные Вещества):
No SVHC (12-Jan-2017)
RoHS статус:
Да
