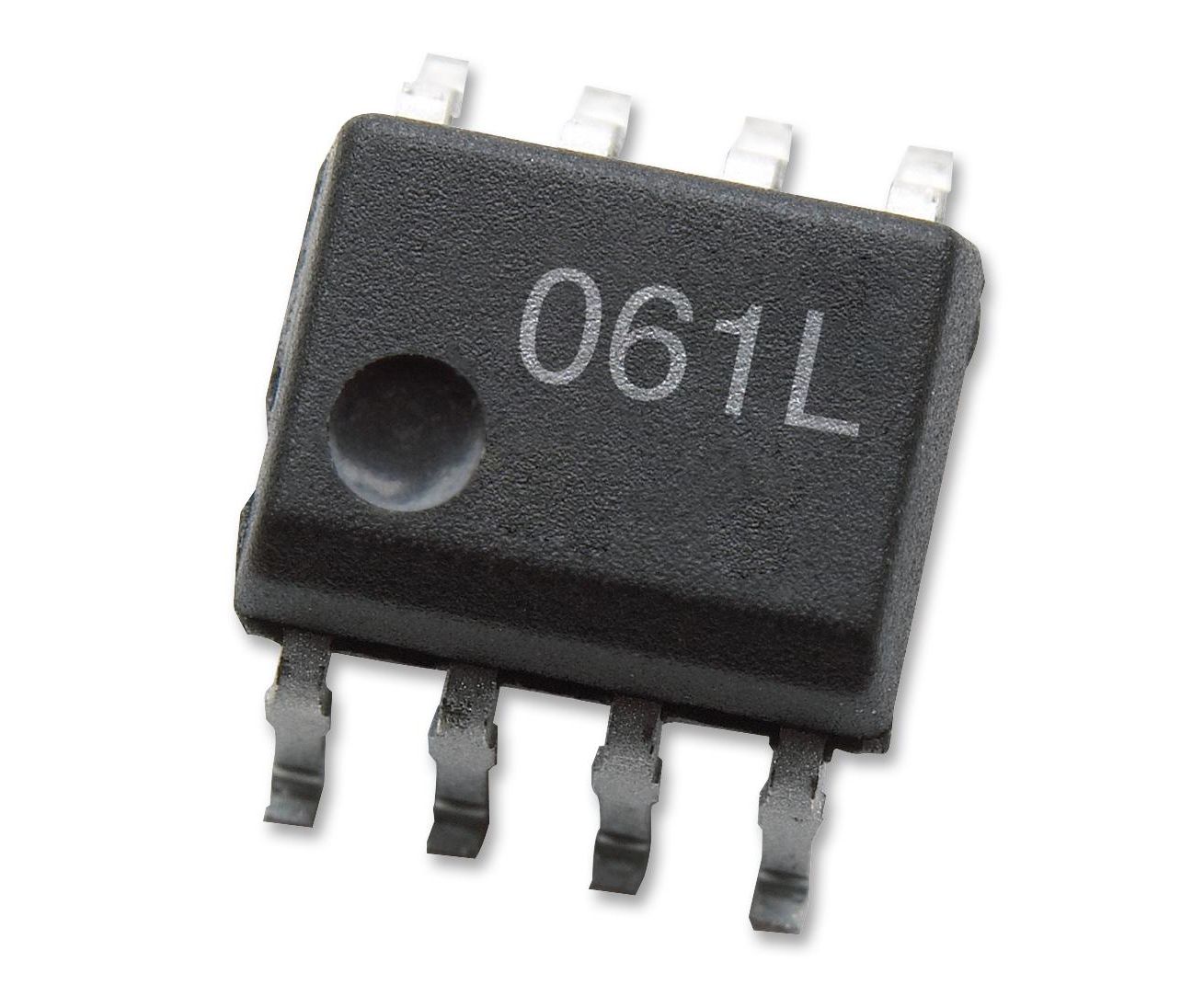

ACPL-061L-500E (BROADCOM LIMITED)
Оптопара, с цифровым выходом, 1 канал, 3.75 кВ, 10 Мбод, SOIC, 8 вывод(-ов)
The ACPL-061L-500E is a 10Mbaud ultra low power Digital CMOS Optocoupler that combines an AlGaAs LED and an integrated high gain photo detector addresses the low power need. The optocoupler consumes ultra low power at maximum 1.5mA IDD across temperature. The forward current is as low as 1.6mA and thus allows direct current drive by most microprocessors. An enable input allows the detector output to be strobed. The internal Faraday shield provides a guaranteed common mode transient immunity specification of 20kV/µs at 1000VCM. It is suitable for high-speed logic interfacing, while consuming extremely low power.
- Output of the detector IC is a CMOS output
- Built-in slew-rate controlled output
- Tri-state output with enable pin VE
- Guaranteed AC and DC performance over -40 to +105°C wide temperature range
Области применения
Связь и Сеть
Предупреждения
It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD.
Количество Выводов:
8вывод(-ов)
Количество Каналов:
1 канал
Линейка Продукции:
-
Напряжение Изоляции:
3.75кВ
Скорость Передачи Данных:
10Мбод
Стиль Корпуса Оптопары:
SOIC
SVHC (Особо Опасные Вещества):
No SVHC (12-Jan-2017)
RoHS статус:
Да
