TSW14J56EVM (TEXAS INSTRUMENTS)

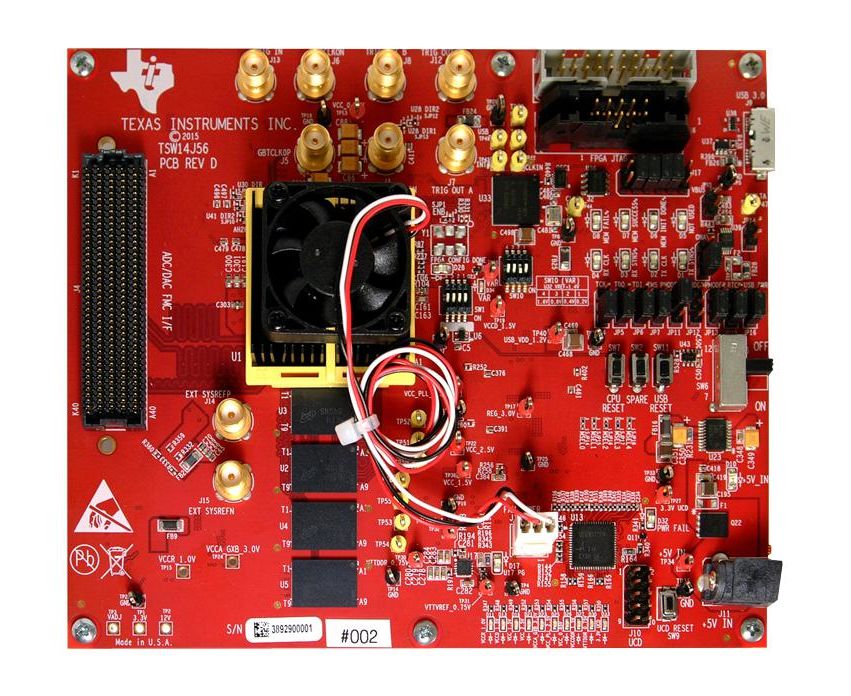

The TSW14J56EVM is an Evaluation Module (EVM), next generation of pattern generator and data capture card used to evaluate performances of the new Texas Instruments (TI) JESD204B family of high-speed analog-to-digital converters (ADC) and digital-to-analog converters (DAC). Populated with an Arria V GZ device and using Altera's JESD204B IP solution, the TSW14J56 can be dynamically configurable to support all lanes speeds from 600Mbps to 12.5Gbps, from 1 to 8 lanes, 1 to 16 converters and 1 to 4 octets per frame. Together with the accompanying high speed data converter pro graphic user interface (GUI), it is a complete system that captures and evaluates data samples from ADC EVM's and generates and sends desired test patterns to DAC EVM's.
