1455ZT2201BK (HAMMOND)
Металлический корпус, Small, Extruded Aluminium, 56 мм, 88.9 мм, 222 мм, IP54

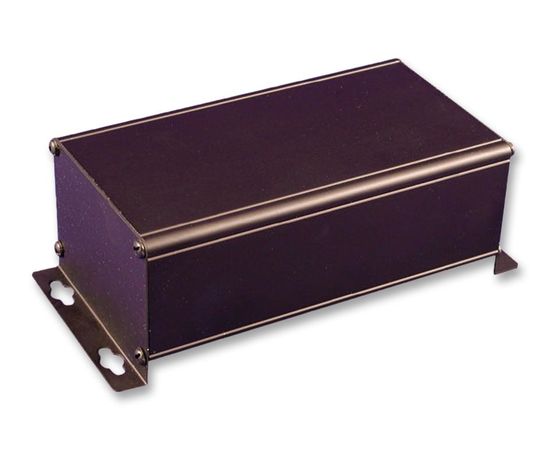

The 1455ZT2201BK from Hammond is a 1455ZT series black anodized wallmount extruded aluminium enclosure. It is designed to house electronics for equipment interfacing where shelf or wall mounting is required. Consists of an aluminium "U" shaped extrusion body and a slide-in flat aluminium bottom plate. Steel foot "L" brackets are attached to each end. "L" brackets are punched with 0.31" (7.9mm) diameter keyholes for easy mounting of enclosure.
- Slide-in plate perfect for easy mounting of components
- Rugged body constructed from extruded aluminium with a minimum thickness of 0.06" (1.5mm)
- Two end "L" brackets are matched to the enclosure
- Dimension is 2.204" x 3.5" x 8.74" (55.98mm x 88.9mm x 222mm)(H x W x D)
Внешняя Глубина - Дюймовый:
8.7"
Внешняя Глубина - Метрический:
222мм
Внешняя Ширина - Дюймовый:
3.5"
Внешняя Ширина - Метрический:
88.9мм
Высота Внешней Стороны - Дюймовый:
2.2"
Класс Защиты IP:
IP54
Линейка Продукции:
1455ZT Series
Материал Корпуса (Чехла):
Extruded Aluminium
Рейтинг NEMA:
-
Тип Корпуса:
Small
Цвет Корпуса:
Черный
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
