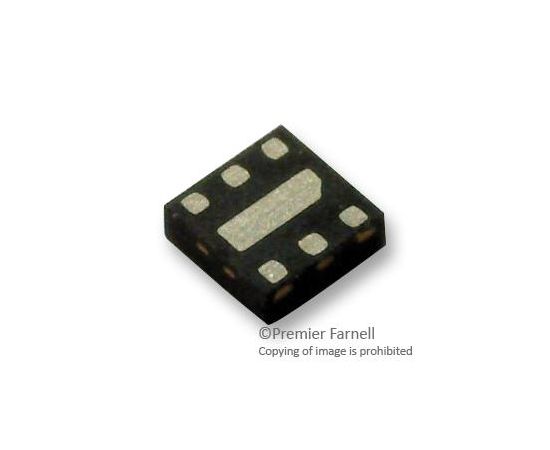

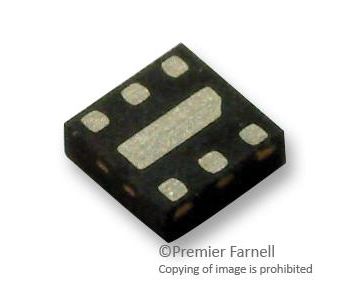

IML8683NL-ADJ-TR (EXAR)
Драйвер светодиода, 1 выход, 3В-80В (Vin), регулируемое управление током светодиода, DFN-6
The IML8683NL-ADJ-TR is a 3-terminal Current Controller (TTCC) for regulating the current flowing through an LED string. The application of the iML8683 is configured in parallel with an LED string. The iML8683 can work as voltage controlled current source, current regulator or cut-off. It is suitable for the applications adopting periodical AC voltage source. The PCB layout is also very flexible to meet various shape requirements. It is especially suitable for replacing incandescent light bulb and linear type fluorescent lamp.
- All solid state components
- No electrolytic capacitor required
- Compact size
- Driver-on-board and chip-on-board available which minimize process flow
- High PF and Low THD performance
- High efficiency achieved
- Flexible PCB layout style
- Wide range of LED forward voltage selection
- Distributed heat to several chips
- TRIAC dimmable
- 88V Input sustaining voltage
- <3V Dropout voltage for up to 150mA regulating current
Области применения
Светодиодное Освещение
Выходное Напряжение:
-
Количество Выводов:
6вывод(-ов)
Количество Выходов:
1выход(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
100°C
Максимальное Входное Напряжение:
80В
Минимальная Рабочая Температура:
-30°C
Минимальное Входное Напряжение:
3В
Соответствует Фталатам RoHS:
Будет Указано Позже
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Привода:
DFN
Топология Устройства:
-
Частота Коммутации:
-
SVHC (Особо Опасные Вещества):
To Be Advised
RoHS статус:
Да
