687724200002 (WURTH ELEKTRONIK)
Кабель FFC / FPC, перемычка, 24 жил(-а), 0.5 мм, Контакты на Разных Сторонах, 7.87 ", 200 мм, Белый

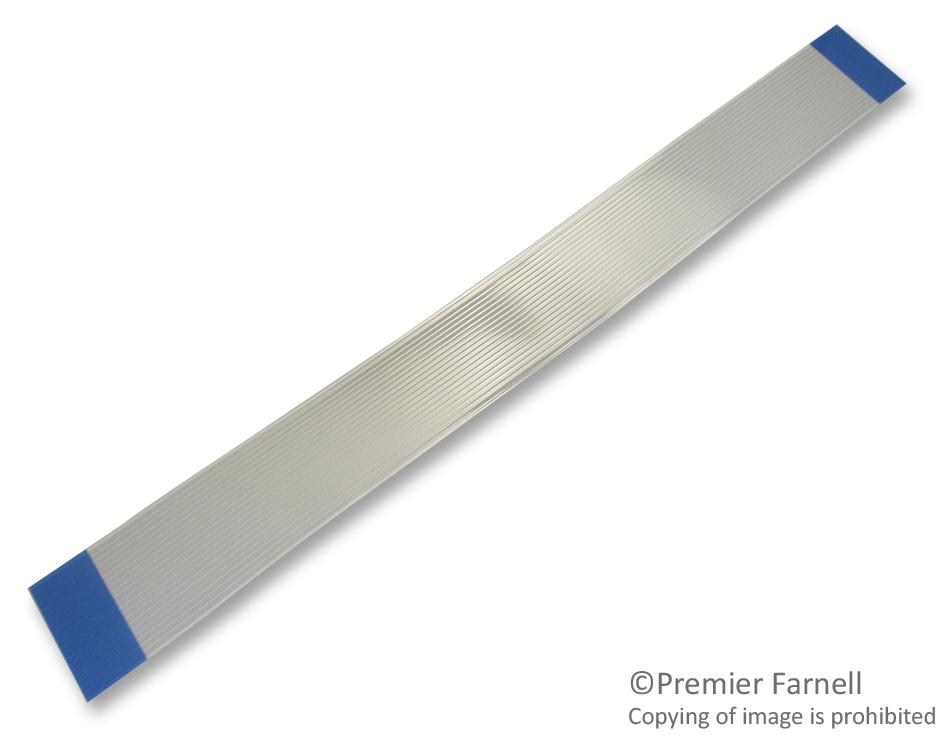

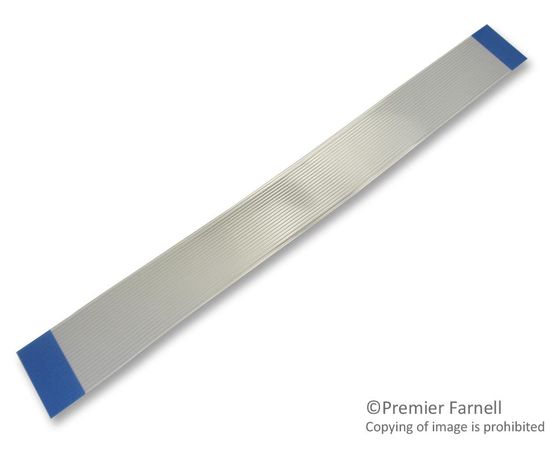

The 687724200002 is a 200mm 24-way type-2 Flat Flexible Cable, contacts opposite, blue PET support tape, tin-plated copper contacts, white PET insulation, 0.5mm pitch. The WR-FFC series flat flexible cable mates with 6871xx14022 and 6873xx124422.
- 0.5A Current rating
- 60V Working voltage
- UL758 Flammability rating
- >1000MR (500VDC) Isolation resistance
- <20mR Contact resistance
- 20 Mating cycles (minimum)
Области применения
Промышленное, Потребительская Электроника
