AVR-CAN (OLIMEX)

F1776310
нет данных

Макетная плата, AT90CAN128 AVR микроконтроллер, CAN контроллер и интерфейс, 60x55мм

Документация
Technical Data Sheet EN

БрендOLIMEX НаименованиеAVR-CAN Цена заШтука Страна производстваBulgaria СкладFarnell

Макетная плата, AT90CAN128 AVR микроконтроллер, CAN контроллер и интерфейс, 60x55мм

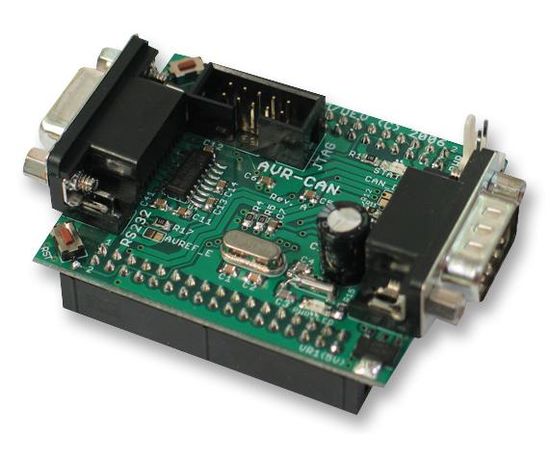

The AVR-CAN development board is a inexpensive way to learn AT90CAN128 microcontroller from Atmel. Its in very compact form 60mm x 55mm and the presence of both CAN and RS 232 allow the customer to make bridge between UART and CAN networks. All AVR pins are available on extension connectors and the board can be easy snap on prototype or other mother board where additional circuits are built.
  • AT90CAN128 MCU with 128Kb flash, 4Kb EEPROM, and 4Kb SRAM memories
  • 5x2pin JTAG connector for programming and debugging with AVR-JTAG-L or AVR-JTAG-USB
  • RS 232 DB9 female connector and driver
  • CAN connector and interface
  • UARTs, eight channel 10bit ADC, watchdog timer, SPI serial port and JTAG interfaces
  • On board voltage regulator (5V)
  • Power supply LED
  • Power supply connector
  • Extension pin headers for each uC pin

Области применения

Связь и Сеть, Промышленное, Считывание и Контрольно-измерительная Аппаратура

Предупреждения

The AVR-CAN board is shipped in protective anti static packaging. The board must not be subject to high electrostatic potentials.
Архитектура Ядра:
AVR
Количество Бит:
8бит
Линейка Продукции:
-
Название Семейства Чипа:
AT90xxx
Номер Ядра Чипа:
AT90
Подархитектура Ядра:
AVR
Производитель Чипа:
Atmel
Содержимое Комплекта:
Плата
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
