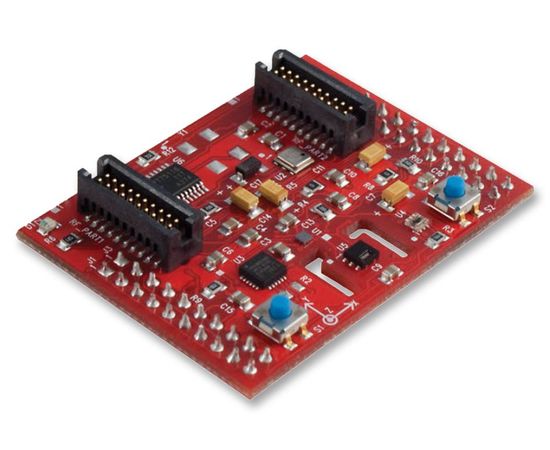

BOOSTXL-SENSHUB (TEXAS INSTRUMENTS)
Расширительная плата, концентратор датчиков BoosterPack, для TM4C Launch Pad серии Tiva C
BOOSTXL-SENSHUB is a low-cost extension board for the Tiva™ C Series TM4C LaunchPad EK-TM4C123GXL evaluation platform for ARM® Cortex™-M4F-based microcontrollers. The Sensor Hub enables the user to create and model innovative prototype solutions that leverage the processing and floating-point capabilities of the TM4C123GH6PM MCU coupled with motion and environmental sensors. The Sensor Hub Booster Pack plugs in to the Booster Pack XL headers located on the top of the LaunchPad.
- One user LED
- One power LED
- EM connector for additional wireless expansion
- 9-axis InvenSense MPU9150 motion sensor
- TMP006 non contact infrared temperature sensor
- Two pairs of 10pin headers provide standard LaunchPad interface
- Primary header (outer row) compatible with other MCU LaunchPads
- Secondary header (inner row) offers additional Tiva C series based expansion signals
- Two user input buttons and LEDs
- wireless evaluation module (EM) interface connection
Области применения
Встроенные Конструкции и Разработка
Архитектура Ядра:
-
Для Использования с:
Оценочным комплектом Tiva серии C EK-TM4C123GXL LaunchPad
Линейка Продукции:
-
Название Семейства Чипа:
-
Номер Ядра Чипа:
-
Подархитектура Ядра:
-
Производитель Чипа:
-
Содержимое Комплекта:
-
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
