2000-SCAN (KEITHLEY)

F2772536
нет данных

Испытательный аксессуар, Карта сканера, Цифровыми мультиметрами Keithley 2000, 2001, 2002, 2010

Документация
Technical Data Sheet EN
Manufacturer Product Page EN

БрендKEITHLEY Наименование2000-SCAN Цена заШтука Страна производстваUnited States СкладFarnell

Испытательный аксессуар, Карта сканера, Цифровыми мультиметрами Keithley 2000, 2001, 2002, 2010

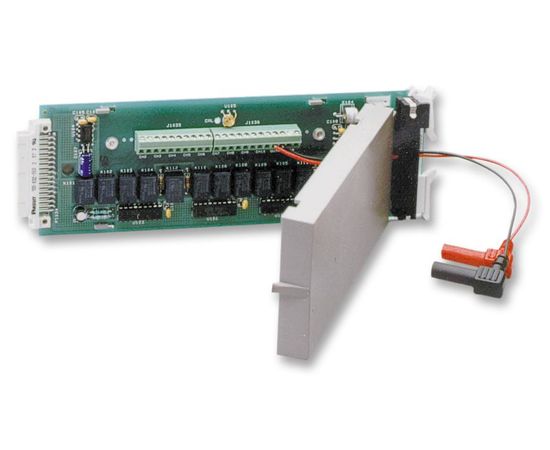

The 2000-SCAN from Keithley is a 10 channel, general purpose scanner card. This scanner card designed to be installed in the model 2000 multimeter, model 2001 multimeter and model 2002 multimeter.
  • Ten channels of 2 pole relay input
  • Channels configurable for 4-pole operation
  • Multiplex one of ten 2 pole or one of five 4 pole channels into a model 2000/2001/2002 multimeter
  • Dimension is 21mm high x 72mm wide x 221mm and weight is 0.4g
  • Maximum voltage between any two terminals is 200V peak
  • Common mode voltage is 350V peak between any terminal and earth
  • Actuation time is 2.5ms maximum on/off
  • 110VDC, 1A switched, 30VA maximum (resistive load) DC signal
  • 125VAC rms or 175VAC peak, 100KHz maximum, 1A switched, 62.5VA maximum (resistive load) AC signal

Содержание

Model 2000-SCAN scanner card, Instruction manual, CA-109 test lead set for output connections (two red, two black).

Для Использования с:
Цифровыми мультиметрами Keithley 2000, 2001, 2002, 2010
Линейка Продукции:
-
Тип Аксессуара:
Карта сканера
SVHC (Особо Опасные Вещества):
No SVHC (12-Jan-2017)
RoHS статус:
Да
