13AC1 (HONEYWELL)
Дверной выключатель безопасности, Серия AC, SPDT, Винт, 250 В, 15.1 А

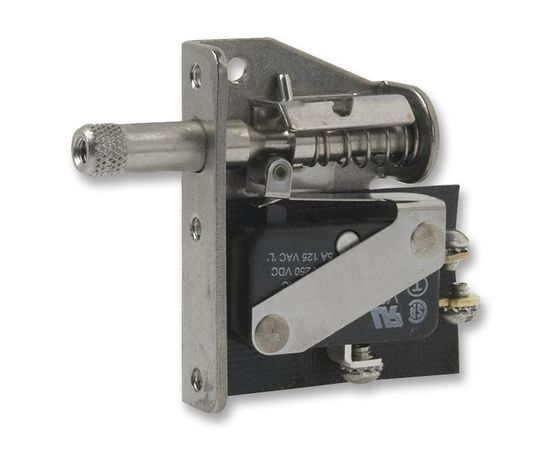

The 13AC1 is a single-pole double-throw (SPDT) Door Switch with rod actuator and screw termination. The MICRO SWITCH™ AC series door switch comes with stainless steel bracket, rod and housing, silver-plated contact. It is used for simple or precision ON/OFF application needs. It enables circuit testing with POWER ON by manually pulling a rod actuator to the maintained-ON position. Closing the door resets the switch. Automatically cuts power when service door or drawer is opened.
- Reliable performance
- Circuit flexibility
- Mounting ease
- -54 to 149°C Operating temperature range
Области применения
Потребительская Электроника, Коммерческое, Компьютеры и Периферия, Тестирование и Измерение, Связь и Сеть, ОВКВ, Промышленное, Медицинское
Предупреждения
Do not use this product as safety or emergency stop device or in any other application where failure of the product could result in personal injury.
Клеммы Переключателя:
Винт
Конфигурация Контакта:
SPDT
Линейка Продукции:
Серия AC
Максимальное Напряжение Контакта AC:
250В
Максимальное Напряжение Контакта DC:
250В
Максимальный Ток Контакта AC:
15.1А
Максимальный Ток Контакта DC:
500мА
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
