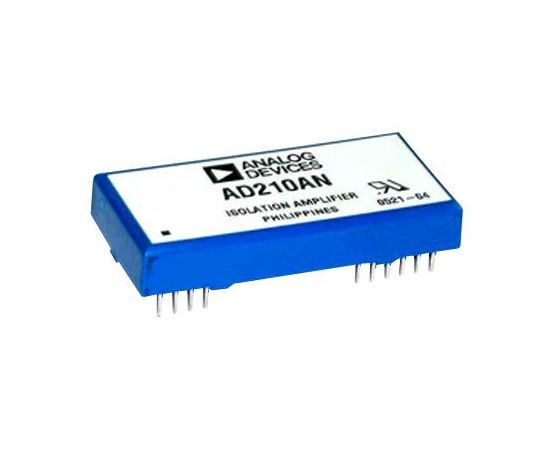

AD210AN (ANALOG DEVICES)
Разделительный усилитель, 3 порта, 1 Усилитель, 15 мВ, 15 В, 13.5В до 16.5В, DIP, 30 вывод(-ов)
The AD210AN is a 3-port Precision Wide Bandwidth Isolation Amplifier manufactured with surface mounted components in an automated assembly process. The AD210 combines design expertise with state-of-the-art manufacturing technology to produce an extremely compact and economical isolator whose performance and abundant user features far exceed those offered in more expensive devices. The AD210 provides a complete isolation function with both signal and power isolation supplied via transformer coupling internal to the module. The AD210's functionally complete design powered by a single +15V supply eliminates the need for an external DC/DC converter unlike optically coupled isolation devices. The true 3-port design structure permits the AD210 to be applied as an input or output isolator, in single or multichannel applications. The amplifier will maintain its high performance under sustained common-mode stress.
- High CMV isolation
- Small size
- High accuracy
- Low nonlinearity
- Wide bandwidth
- Low gain drift
- High CMR
- Isolated power
- Uncommitted input amplifier
Области применения
Тестирование и Измерение, Обработка Сигнала
Диапазон Напряжения Питания:
13.5В до 16.5В
Количество Выводов:
30вывод(-ов)
Количество Усилителей:
1 Усилитель
Линейка Продукции:
AD210 Series
Максимальная Рабочая Температура:
85°C
Максимальное Нелинейное Усиление:
0.025%
Минимальная Рабочая Температура:
-40°C
Напряжение Входного Смещения:
15мВ
Напряжение Изоляции:
15В
Полоса Пропускания:
20кГц
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Усилителя:
DIP
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Нет
