MAX3761EEP+ (MAXIM INTEGRATED PRODUCTS)

F2514422
нет данных

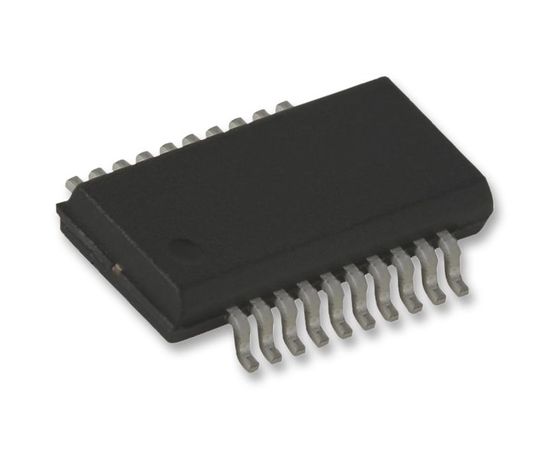

Ограничивающий усилитель, 4.5 В, 5.5 В, QSOP, 20 вывод(-ов), -40 °C

Документация
Technical Data Sheet EN

БрендMAXIM INTEGRATED PRODUCTS НаименованиеMAX3761EEP+ Цена заШтука Страна производстваUnited States СкладFarnell

Ограничивающий усилитель, 4.5 В, 5.5 В, QSOP, 20 вывод(-ов), -40 °C

The MAX3761EEP+ is a low power, 622Mbps limiting amplifier with chatter free power detect for LANs in 20 pin QSOP package. This limiting amplifier with 4mV sensitivity and PECL data outputs are optimized for operation in low cost, 622Mbps, LAN/ATM LAN fibre optics applications. An integrated power detector senses input signal's amplitude. A received signal strength indicator (RSSI) gives an analogue indication of power level while the complementary loss of signal (LOS) outputs indicate if input power level exceeds programmed threshold level. The LOS threshold can be adjusted to detect signal amplitudes between 3mVp-p and 100mVp-p, providing a 15dB LOS adjustment in fibre optic receivers. The LOS outputs have 3.5dB of hysteresis which prevents chatter when input signal levels are small. DISABLE and LOS can be used to implement a squelch function which turns off data outputs when input signal is below programmed threshold. It is used in 155Mbps LAN/ATM LAN receivers.
  • Supply voltage range is 4.5V to 5.5V
  • Operating temperature range from -40°C to 85°C
  • Chatter free power detector with programmable loss of signal outputs
  • Input sensitivity of 4mV
  • PECL data outputs
  • Output edge speed of 250ps
  • Low 15ps pulse width distortion
  • TTL loss of signal interface logic

Области применения

Обработка Сигнала

Количество Выводов:
20вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
4.5В
Полоса Пропускания:
-
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Корпуса Усилителя:
QSOP
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
