MAX3645EEE+T (MAXIM INTEGRATED PRODUCTS)
Ограничивающий усилитель, 125Мб/с до 200Мб/с, 250 МГц, 2.97 В, 5.5 В, QSOP, 16 вывод(-ов), -40 °C
The MAX3645EEE+T is a +2.97V to +5.5V, 125Mbps to 200Mbps limiting amplifier with loss of signal detector in 16 pin QSOP package. The limiting amplifier functions as a data quantizer and is pin compatible with the Mindspeed MC2045-2 and MC2045-2Y post amplifiers. The amplifier accepts a wide range of input voltages and provides constant-level positive emitter-coupled logic (PECL) output voltages with controlled edge speeds. The MAX3645 features an integrated power detector with complementary PECL loss of signal (LOS) outputs that indicate when the input power level drops below a programmable threshold. An optional squelch function holds the data outputs at static levels during a LOS condition.
- Supply current is 18mA
- Operating temperature range from -40°C to 85°C
- Input sensitivity is 500µV (BER = 10-12)
- Compatible with 4B/5B data coding
- Programmable LOS Threshold
- Stable LOS threshold over supply range
- Output disable function and automatic squelch
Области применения
Связь и Сеть, Обработка Сигнала
Количество Выводов:
16вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
2.97В
Полоса Пропускания:
250МГц
Соответствует Фталатам RoHS:
Будет Указано Позже

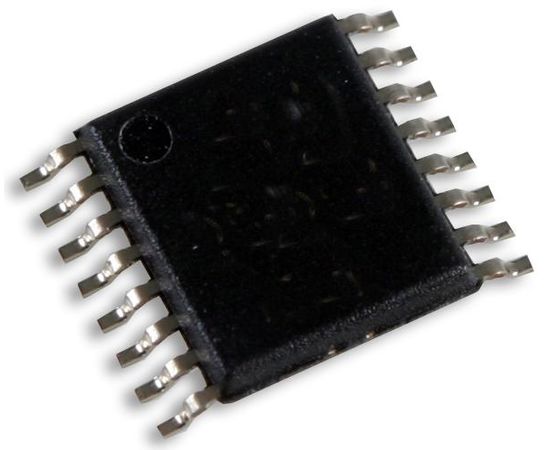

Стиль Корпуса Усилителя:
QSOP
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
