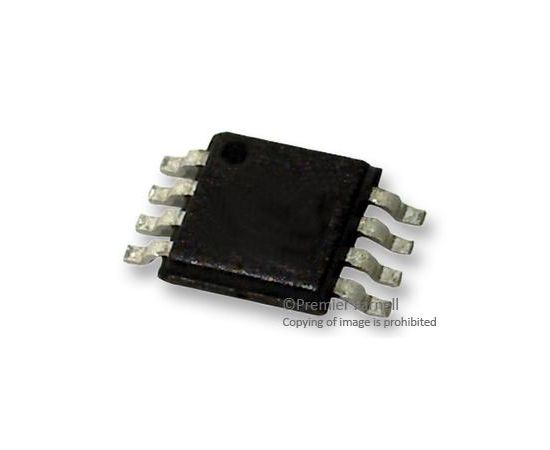

ADCMP553BRMZ (ANALOG DEVICES)
Аналоговый компаратор, одиночный, Высокоскоростной, 1 Компаратор, 500 пс, 3.135В до 5.25В, MSOP
The ADCMP553BRMZ is a High Speed PECL/LVPECL Comparator fabricated on proprietary XFCB process. It features a 500ps propagation delay with less than 125ps overdrive dispersion. Overdrive dispersion, a measure of the difference in propagation delay under differing overdrive conditions is a particularly important characteristic of high speed comparator. A differential input stage permits consistent propagation delay with a common-mode range from -0.2V to VCCI -2.0V. Outputs are complementary digital signals and are fully compatible with PECL and 3.3V LVPECL logic families. The outputs provide sufficient drive current to directly drive transmission lines terminated in 50R to VCCO -2V. A latch input is included and permits tracking, track-and-hold or sample-and-hold modes of operation. The latch input pins contain internal pull-ups that set the latch in tracking mode when left open.
- Single power supply
- 125ps Overdrive dispersion
- Differential PECL/LVPECL compatible outputs
- Differential latch control
- Internal latch pull-up resistors
- Power supply rejection greater than 70dB
- 700ps Minimum pulse width
- 500ps Typical output rise/fall
- Programmable hysteresis
Области применения
Тестирование и Измерение, Считывание и Контрольно-измерительная Аппаратура, Обработка Сигнала, Время и Расчет Времени
Время Реакции:
500пс
Диапазон Напряжения Питания:
3.135В до 5.25В
Количество Выводов:
8вывод(-ов)
Количество Компараторов:
1 Компаратор
Линейка Продукции:
ADCMP553 Series
Максимальная Рабочая Температура:
85°C
Минимальная Рабочая Температура:
-40°C
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Компаратора:
MSOP
Тип Выхода Микросхемы:
Дополнительный
Тип Компаратора:
Высокоскоростной
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
