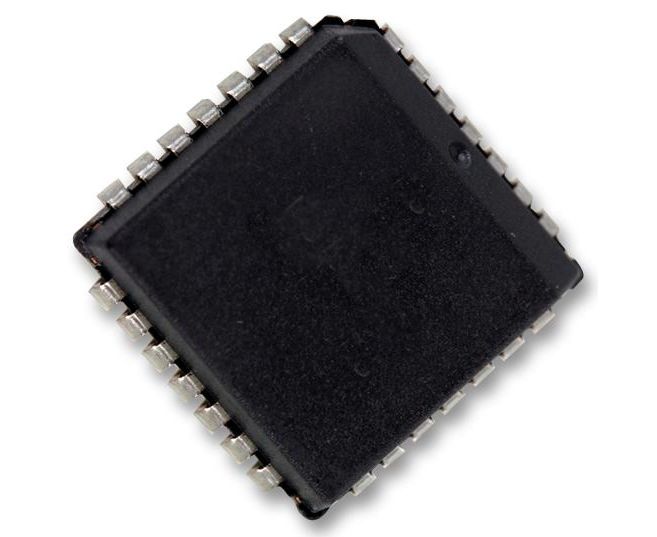

AD698APZ (ANALOG DEVICES)

F2295990
нет данных

Формирователь сигналов, 20 кГц, 13 В, 36 В, LCC, 28 вывод(-ов), -40 °C

Документация
Technical Data Sheet EN
CAD CadSoft_EAGLE EN

БрендANALOG DEVICES НаименованиеAD698APZ Цена заШтука Страна производстваUnited States СкладFarnell

Формирователь сигналов, 20 кГц, 13 В, 36 В, LCC, 28 вывод(-ов), -40 °C

The AD698APZ is an Universal Linear Variable Differential Transformer (LVDT) Signal Conditioner used in conjunction with LVDTs to convert transducer mechanical position to a unipolar or bipolar DC voltage with a high degree of accuracy and repeatability. All circuit functions are included on the chip. With the addition of a few external passive components to set frequency and gain, the AD698 converts the raw LVDT output to a scaled DC signal. The device will operate with half-bridge LVDTs, LVDTs connected in the series opposed configuration (4-wire) and RVDTs. This conditioner contains a low distortion sine wave oscillator to drive the LVDT primary. Two synchronous demodulation channels of the AD698 are used to detect primary and secondary amplitude. The part divides the output of the secondary by the amplitude of the primary and multiplies by a scale factor.
  • Single chip solution, contains internal oscillator and voltage reference
  • No adjustments required
  • DC output proportional to position
  • 20Hz to 20kHz Frequency range
  • Unipolar or bipolar output
  • Decodes AC bridge signals
  • Outstanding performance
  • 0.05% Linearity
  • 20ppm/°C Typical gain drift
  • 5ppm/°C Typical offset drift

Области применения

Считывание и Контрольно-измерительная Аппаратура

Предупреждения

ESD sensitive device, take proper precaution while handling the device.
Количество Выводов:
28вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
36В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
13В
Полоса Пропускания:
20кГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Усилителя:
LCC
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
