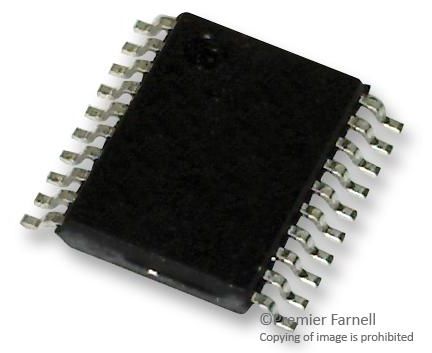

AD5930YRUZ (ANALOG DEVICES)
Синтезатор частоты, программируемый, 25МГц, 2.3В до 5.5В, TSSOP-20
The AD5930YRUZ is a Waveform Generator with programmable frequency sweep and output burst capability. Utilizing embedded digital processing that allows enhanced frequency control, the device generates synthesized analog or digital frequency-stepped waveforms. Because frequency profiles are preprogrammed, continuous write cycles are eliminated and thereby free up valuable DSP/microcontroller resources. Waveforms start from a known phase and are incremented phase continuously, which allows phase shifts to be easily determined. Consuming only 8mA, the AD5930 provides a convenient low power solution to waveform generation. The AD5930 can be operated in a variety of modes. In continuous output mode, the device outputs the required frequency for a defined length of time and then steps to the next frequency.
- Programmable frequency profile
- No external components necessary
- Burst and listen capability
- Pre-programmable frequency profile minimizes number of DSP/microcontroller writes
- Sinusoidal/triangular/square wave outputs
- Automatic or single pin control of frequency stepping
- Waveform starts at known phase
- 20µA Power-down mode
Области применения
Считывание и Контрольно-измерительная Аппаратура, Тестирование и Измерение, Промышленное
Предупреждения
ESD sensitive device, take proper precaution while handling the device.
Количество Выводов:
20вывод(-ов)
Корпус Цифровой ИС:
TSSOP
Линейка Продукции:
AD5930 Series
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
2.3В
Соответствует Фталатам RoHS:
Да
Тип Синтезатора:
Частота
Частота:
25МГц
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
