LTC6954IUFF-2#PBF (LINEAR TECHNOLOGY)

F2517567
нет данных

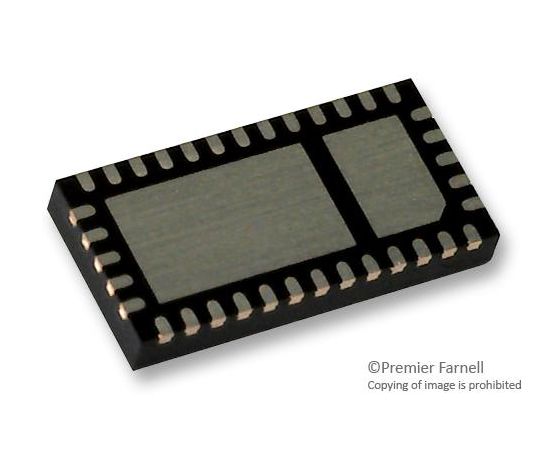

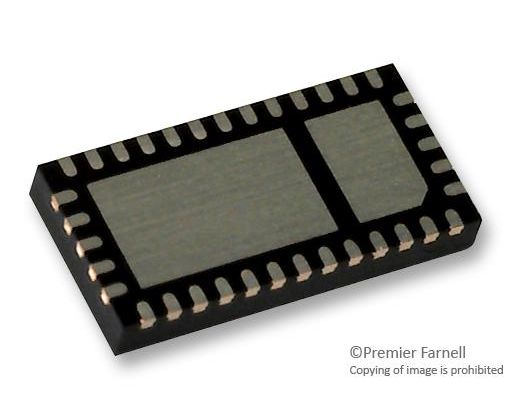

Clock Distribution, Divider, 1.4 GHz, 3.15V-3.45V supply, 3 Outputs, QFN-36

Документация
Technical Data Sheet EN

БрендLINEAR TECHNOLOGY НаименованиеLTC6954IUFF-2#PBF Цена заШтука Страна производстваUnited States СкладFarnell

Clock Distribution, Divider, 1.4 GHz, 3.15V-3.45V supply, 3 Outputs, QFN-36

The LTC6954IUFF-2#PBF is a low phase noise, triple output clock distribution divider/driver in 36 pin QFN package. It has three outputs and each output is individually programmable to divide the input frequency by any integer from 1 to 63 and to delay each output by 0 to 63 input clock cycles. The output duty cycle is always 50% regardless of the divide number. It also features Linear Technology's EZSync system for perfect clock synchronization and alignment every time. The device settings are controlled through an SPI-compatible serial port. It is used in clocking high speed, high resolution ADCs, DACs and data acquisition systems and low jitter clock distribution.
  • Supply voltage range from 3.15V to 3.45V
  • Maximum supply current is 325mA
  • Two LVPECL and one LVDS/CMOS low noise outputs
  • Additive jitter<20fsRMS (12KHz to 20MHz), additive jitter< 85fsRMS (10Hz to nyquist)
  • Maximum input frequency is 1.8GHz
  • Maximum input frequency is 1.4GHz
  • Operating temperature range from -40°C to 105°C

Области применения

Время и Расчет Времени

Количество Выводов:
36вывод(-ов)
Количество Выходов:
3выход(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
105°C
Максимальное Напряжение Питания:
3.45В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
3.15В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса ИС Тактового Генератора:
QFN
Тип Микросхемы Таймера:
Распределение Тактовых Сигналов, Делитель
Частота:
1.4ГГц
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
