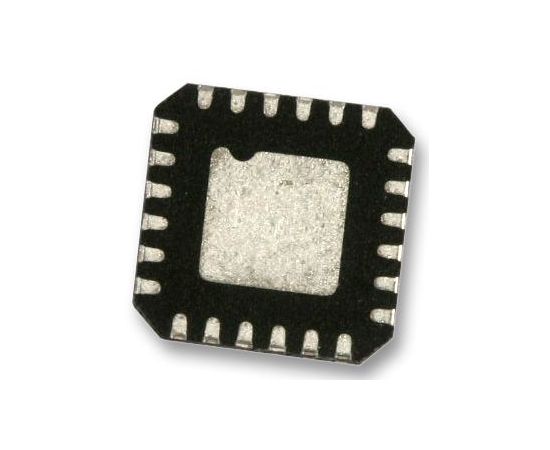

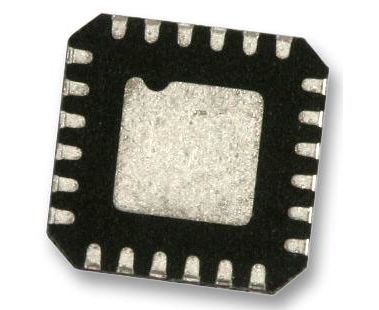

ADF4360-1BCPZ (ANALOG DEVICES)
Синтезатор с ФАПЧ и ГУН, 2.45ГГц, 3В до 3.6В питание, LFCSP-24
The ADF4360-1BCPZ is a fully integrated integer-N Synthesizer and Voltage Controlled Oscillator (VCO) designed for a center frequency of 2250MHz. In addition, there is a divide-by-2 option available, whereby the user gets an RF output of between 1025 and 1225MHz. Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 to 3.6V and can be powered down when not in use.
- Divide-by-2 output
- 1.8V Logic compatibility
- Integer-N synthesizer
- Programmable dual-modulus prescaler 8/9, 16/17, 32/33
- Programmable output power level
- 3-wire serial interface
- Analog and digital lock detect
- Hardware and software power-down mode
Области применения
Радиочастотная Связь, Связь и Сеть, Беспроводное
Количество Выводов:
24вывод(-ов)
Линейка Продукции:
ADF4360-1 Series
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
3.6В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
3В
Соответствует Фталатам RoHS:
Да
Стиль Корпуса ФАПЧ:
LFCSP
Тип ФАПЧ:
Синтезатор и ГУН
Частота:
2.45ГГц
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
