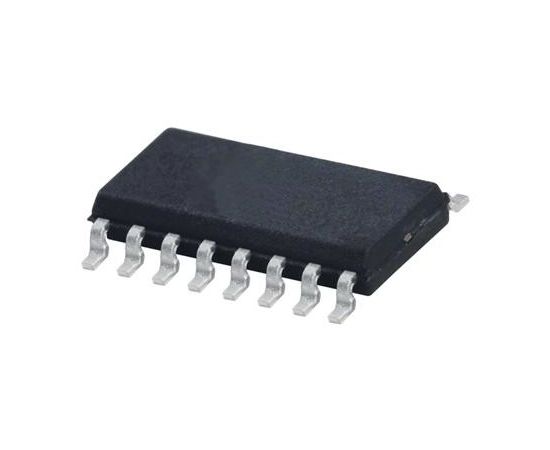

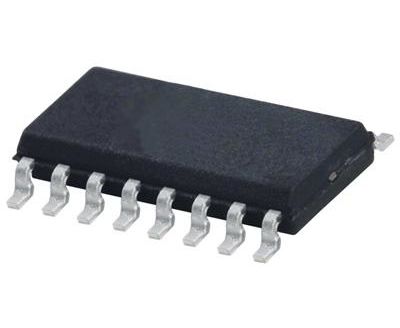

L6699DTR (STMICROELECTRONICS)

F2435543
нет данных

Резонансный контроллер, 8.85В до 16В вход, NSOIC-16

Документация
Technical Data Sheet EN

БрендSTMICROELECTRONICS НаименованиеL6699DTR Цена заШтука (Поставляется на разрезной ленте) Страна производстваPhilippines СкладFarnell

Резонансный контроллер, 8.85В до 16В вход, NSOIC-16

The L6699DTR is a double-ended enhanced high voltage Resonant Controller specific to series-resonant half bridge topology. Both LLC and LCC configurations are supported. It provides symmetrical complementary duty cycle: the high-side switch and the low-side switch are driven ON/OFF 180° out-of phase for exactly the same time. Output voltage regulation is obtained by modulating the operating frequency. The dead-time inserted between the turn-OFF of one switch and the turn-ON of the other one is automatically adjusted to best fit the transition times of the half bridge midpoint. To drive the high-side switch with the bootstrap approach, the IC incorporates a high voltage floating structure able to withstand more than 600V with a synchronous-driven high voltage DMOS that replaces the external fast-recovery bootstrap diode. The IC enables the user to set the operating frequency range of the converter by means of a high-accuracy externally programmable oscillator.
  • Symmetrical duty cycle, variable frequency control of resonant half bridge
  • Self-adjusting adaptive deadtime
  • High-accuracy oscillator
  • 2-level OCP - Frequency-shift and immediate shutdown
  • Interface with PFC controller
  • Anti-capacitive-mode protection
  • Burst-mode operation at light load
  • Input for brownout protection or power-on/off sequencing
  • "Safe-start" procedure prevents hard switching at startup
  • 600V - Rail compatible high-side gate driver with integrated bootstrap diode and high dv/dt immunity
  • -300/800mA high-side and low-side gate drivers with UVLO pull-down

Области применения

Потребительская Электроника, Компьютеры и Периферия, Визуализация, Видео и Зрение, Связь и Сеть, Управление Питанием

Количество Выводов:
16вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
150°C
Максимальное Напряжение Питания:
16В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
8.85В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Тип Корпуса ИС:
NSOIC
Тип упаковки:
Разрезная лента
Функция Микросхемы:
Резонансный Контроллер
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
