MFRC53101T/0FE,112 (NXP)
Микросхема РЧИД, 13.56МГц, считыватель, MIFARE 1K/4K, расстояние 100мм, 3.3В до 5В питание, SOIC-32
The MFRC53101T/0FE,112 is a standard ISO/IEC 14443 A/B Reader IC features a highly integrated reader IC for contactless communication at 13.56MHz. The reader IC provides outstanding modulation and demodulation for passive contactless communication, a wide range of methods and protocols and pin compatibility with the MFRC500, MFRC530 and SLRC400. All protocol layers of the ISO/IEC 14443 A and ISO/IEC 14443 B communication standards are supported provided additional components, such as the oscillator, power supply and coil. Standardized protocols, such as ISO/IEC 14443-4 and/or ISO/IEC 14443 B anti-collision are correctly implemented. The IC supports contactless communication using MIFARE higher baud rates. The receiver module provides a robust and efficient demodulation/decoding circuitry implementation for compatible transponder signals.
- Fast NFC design start-up
- Highly integrated analogue circuitry for demodulating and decoding card/label response
- Buffered output drivers enable antenna connection using the minimum of external components
- Proximity operating distance up to 100mm
- Contactless communication at MIFARE higher baud rates
- Crypto1 and secure non-volatile internal key memory
- Parallel microprocessor interface with internal address latch and IRQ line
- Flexible interrupt handling
Области применения
Потребительская Электроника, Автоматизация и Управление Процессами, Визуализация, Видео и Зрение
Выходная Мощность:
-
Количество Выводов:
32вывод(-ов)
Линейка Продукции:
Серия MFRC531
Максимальная Частота:
13.56МГц
Максимальное Напряжение Питания:
3.6В
Минимальная Частота:
-
Минимальное Напряжение Питания:
3В
Потребление Тока:
25мА
Программируемая Память:
-
Соответствует Фталатам RoHS:
Да

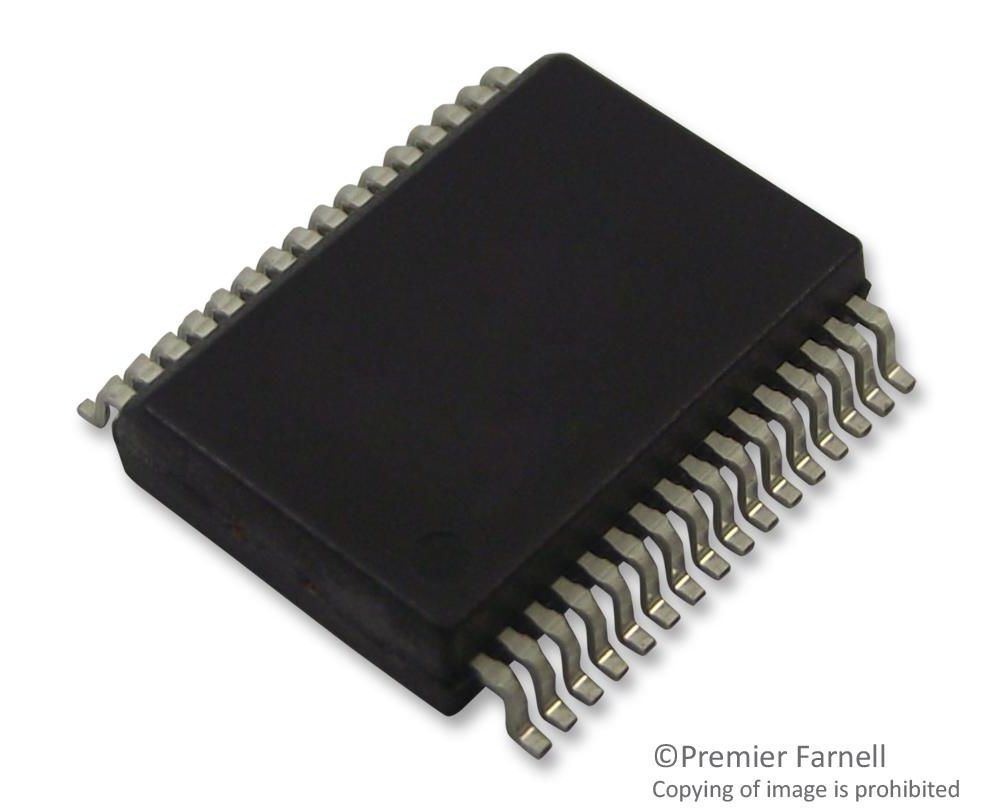

Стиль Корпуса Радиочастотной Микросхемы:
SOIC
Тип RFID Микросхемы:
Считыватель
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
