MFRC52202HN1,151 (NXP)

F1902838
нет данных

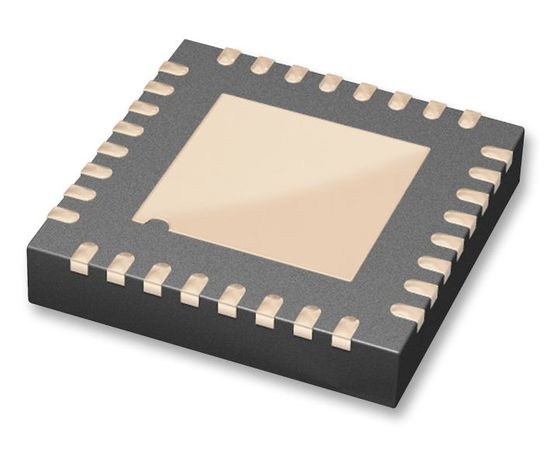

РЧИД, 13.56МГц, считыватель, 5мкА, 2.5В до 3.3В питание, HVQFN-32

Документация
Technical Data Sheet EN
CAD CadSoft_EAGLE EN

БрендNXP НаименованиеMFRC52202HN1,151 Цена заШтука Страна производстваTaiwan СкладFarnell

РЧИД, 13.56МГц, считыватель, 5мкА, 2.5В до 3.3В питание, HVQFN-32

The MFRC52202HN1,151 is a highly integrated Reader/Writer IC for contactless communication and supports ISO/IEC 14443 A/MIFARE mode. The internal transmitter is able to drive a reader/writer antenna designed to communicate with ISO/IEC 14443 A/MIFARE cards and transponders without additional active circuitry. The receiver module provides a robust and efficient implementation for demodulating and decoding signals from ISO/IEC 14443 A/MIFARE compatible cards and transponders. The digital module manages the complete ISO/IEC 14443 A framing and error detection (parity and CRC) functionality. The MFRC522 supports contactless communication and uses MIFARE higher transfer speeds up to 848kBd in both directions.
  • Highly integrated analogue circuitry to demodulate and decode responses
  • Buffered output drivers for connecting an antenna with the minimum number of external components
  • Typical operating distance in read/write mode up to 50mm depending on the antenna size and tuning
  • Supports MFIN/MFOUT
  • Additional internal power supply to the smart card IC connected via MFIN/MFOUT
  • FIFO buffer handles 64-byte send and receive

Области применения

Связь и Сеть, Обработка Сигнала

Выходная Мощность:
-
Количество Выводов:
32вывод(-ов)
Линейка Продукции:
Серия MFRC522
Максимальная Частота:
13.56МГц
Максимальное Напряжение Питания:
3.3В
Минимальная Частота:
-
Минимальное Напряжение Питания:
2.5В
Потребление Тока:
5мкА
Программируемая Память:
-
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Радиочастотной Микросхемы:
HVQFN
Тип RFID Микросхемы:
Считыватель
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
