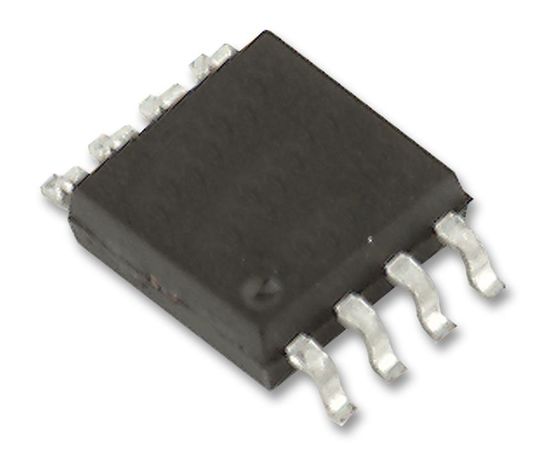

AD5321BRMZ (ANALOG DEVICES)

F9603964
нет данных

ЦАП, 12 бит, 125 Квыборок/с, Последовательный, 2.5В до 5.5В, MSOP, 8 вывод(-ов)

Документация
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

БрендANALOG DEVICES НаименованиеAD5321BRMZ Цена заШтука Страна производстваIreland СкладFarnell

ЦАП, 12 бит, 125 Квыборок/с, Последовательный, 2.5В до 5.5В, MSOP, 8 вывод(-ов)

The AD5321BRMZ is a single 12-bit buffered voltage-output Digital-to-analog Converter (DAC) operates from a single 2.5 to 5.5V supply, consuming 120µA at 3V. The on-chip output amplifier allows rail-to-rail output swing with a slew rate of 0.7V/µs. It uses a 2-wire serial interface that operates at clock rates up to 400kHz. The reference for the DAC is derived from the power supply inputs and thus gives the widest dynamic output range. This part incorporates a power-on reset circuit, which ensures that the DAC output powers up to 0V and remains there until a valid write takes place. The parts contain a power-down feature that reduces the current consumption of the device to 50nA at 3V and provides software-selectable output loads while in power-down mode. The low power consumption in normal operation makes this DAC ideally suited to portable battery-operated equipment.
  • Data read-back capability
  • Guaranteed monotonic by design over all codes
  • Reference derived from power supply
  • Power-ON reset to 0V
  • 3 Power-down functions

Области применения

Автоматизация и Управление Процессами, Переносные Устройства

Диапазон Напряжения Питания:
2.5В до 5.5В
Интерфейс Данных:
2-проводной, Последовательный
Количество Выводов:
8вывод(-ов)
Линейка Продукции:
AD5321 Series
Максимальная Рабочая Температура:
105°C
Минимальная Рабочая Температура:
-40°C
Разрешение (бит):
12бит
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса АЦП / ЦАП:
MSOP
Тип Входного Канала:
Последовательный
Частота Выборки:
125Квыборок/с
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
