BQ77PL900DL (TEXAS INSTRUMENTS)
Устройство защиты Li-Ion батареи от перенапряжения, 5/6/7/8/9/10 последовательных, 7В-50В
The BQ77PL900DL is a five to ten series cell Lithium-ion Battery Pack Protector. The integrated I?C communications interface allows the protector also to be as an analogue front end (AFE) for a Host controller. The BQ77PL900 integrates a voltage translation system to extract battery parameters such as individual cell voltages and charge/discharge current. Variables such as voltage protection thresholds and detection delay times can be programmed by using the internal EEPROM. The battery pack protector can act as a stand-alone self-contained battery protection system (stand-alone mode). It can alternatively be combined with a host microcontroller to offer fuel gauge or other battery management capabilities to the host system (host-control mode). The protector provides full safety protection for overvoltage, under-voltage, over-current in discharge and short-circuit in discharge conditions. No external components are needed to configure the protection features.
- PMOS FET Drive for charge and discharge FETs
- Pack protection control and recovery
- Individual cell monitoring
- Integrated cell balancing
- Fixed over-temperature protection
- I?C interface to host controller
- Analogue interface for host cell measurement and system charge/discharge current
- Host-controlled protection recovery
- Host-controlled cell balancing
- Green product and no Sb/Br
Области применения
Управление Питанием, Переносные Устройства, Медицинское
Защита Батареи:
Перегрузка по Току, Перенапряжение / Недостаточное Напряжение, Короткое Замыкание
Количество Батарей:
10
Количество Выводов:
48вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
100°C
Максимальное Напряжение Питания:
50В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
7В
Соответствует Фталатам RoHS:
Да

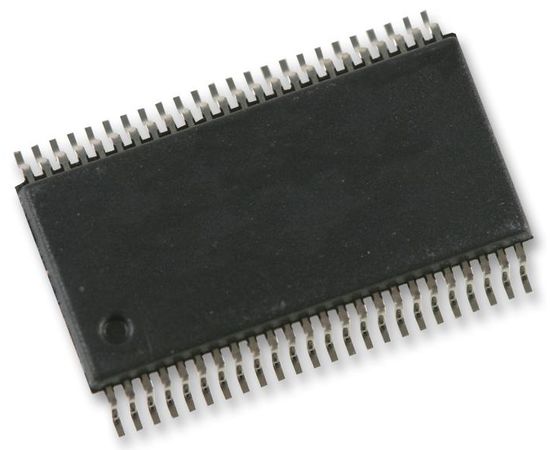

Стиль Корпуса ИС Батареи:
SSOP
Тип Батареи:
Литий-ионная, Литий-полимерная
Ток Выключения:
0.1мкА
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
