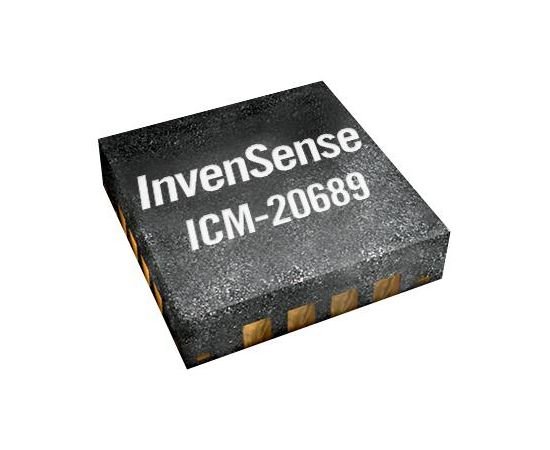

ICM-20689 (INVENSENSE)

F2911512
нет данных

МЭМС модуль, 1.71 В, 3.45 В, QFN, 24 вывод(-ов), ± 250°/с, ± 500°/с, ± 1000°/с, ± 2000°/с

Документация
Technical Data Sheet EN

БрендINVENSENSE НаименованиеICM-20689 Цена заШтука (Поставляется на разрезной ленте) Страна производстваTaiwan СкладFarnell

МЭМС модуль, 1.71 В, 3.45 В, QFN, 24 вывод(-ов), ± 250°/с, ± 500°/с, ± 1000°/с, ± 2000°/с

The ICM-20689 is a 6-axis MotionTracking device that combines a 3 axis gyroscope, 3 axis accelerometer, and a Digital Motion Processor™ (DMP) in a small 4x4x0.9 mm (24pin QFN) package. ICM-20689 includes on-chip 16bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range down to 1.71V. Communication ports include I2C and high speed SPI at 8MHz.
  • User-programmable interrupts
  • Wake-on-motion interrupt for low power operation of applications processor
  • 4K-byte FIFO buffer enables the applications processor to read the data in bursts
  • On-Chip 16bit ADCs and Programmable Filters
  • Host interface: 8 MHzSPI or 400kHz Fast Mode I2C
  • Digital-output temperature sensor
  • VDD operating range of 1.71V to 3.45V
  • MEMS structure hermetically sealed and bonded at wafer level

Области применения

Привод Двигателя и Управление, Переносные Устройства

Диапазон Гироскопа:
± 250°/с, ± 500°/с, ± 1000°/с, ± 2000°/с
Диапазон Ускорения:
± 2g, ± 4g, ± 8g, ± 16g
Количество Выводов:
24вывод(-ов)
Линейка Продукции:
-
Максимальное Напряжение Питания:
3.45В
Минимальное Напряжение Питания:
1.71В
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Корпуса Микросхемы Датчика:
QFN
Функция МЭМС Модуля:
-
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
